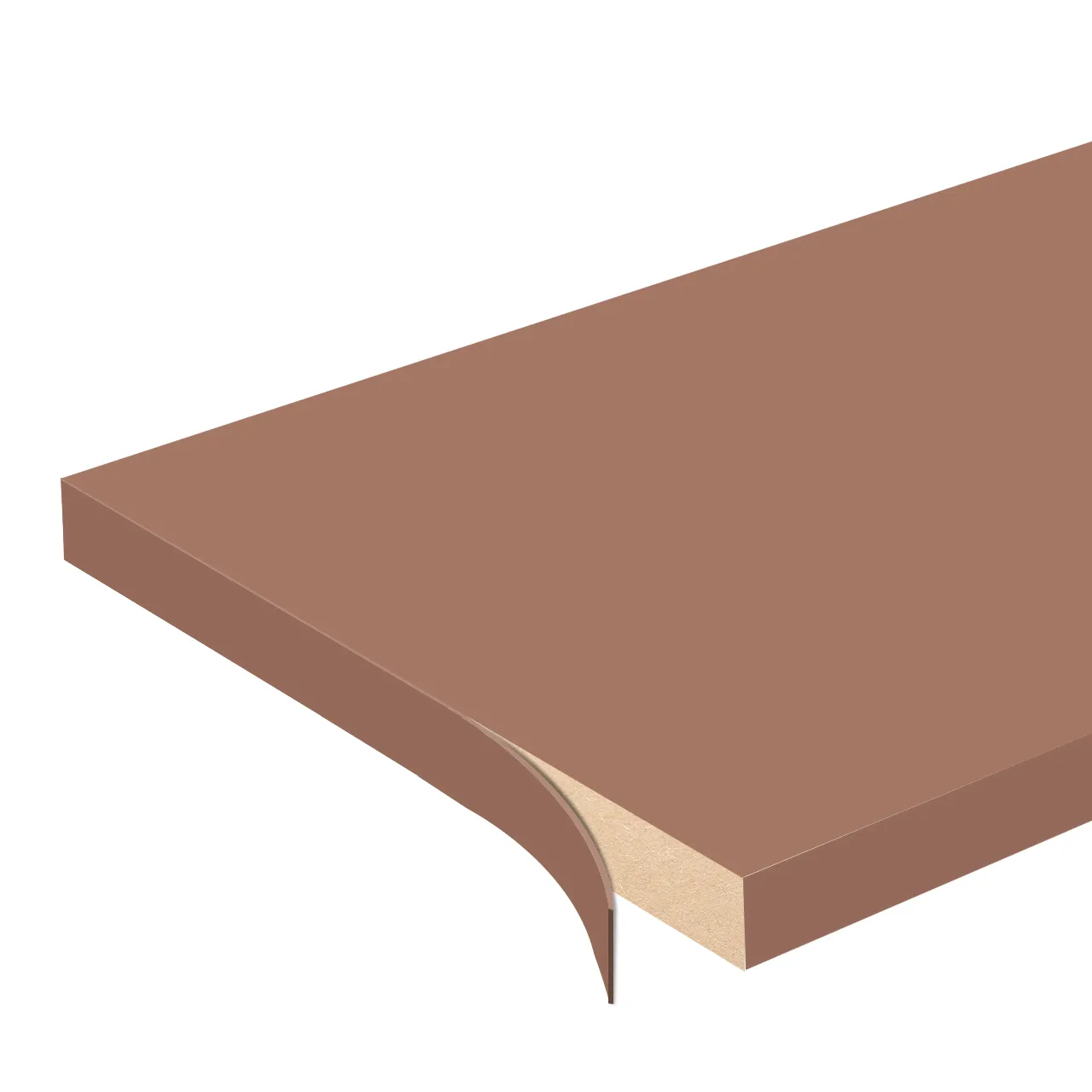

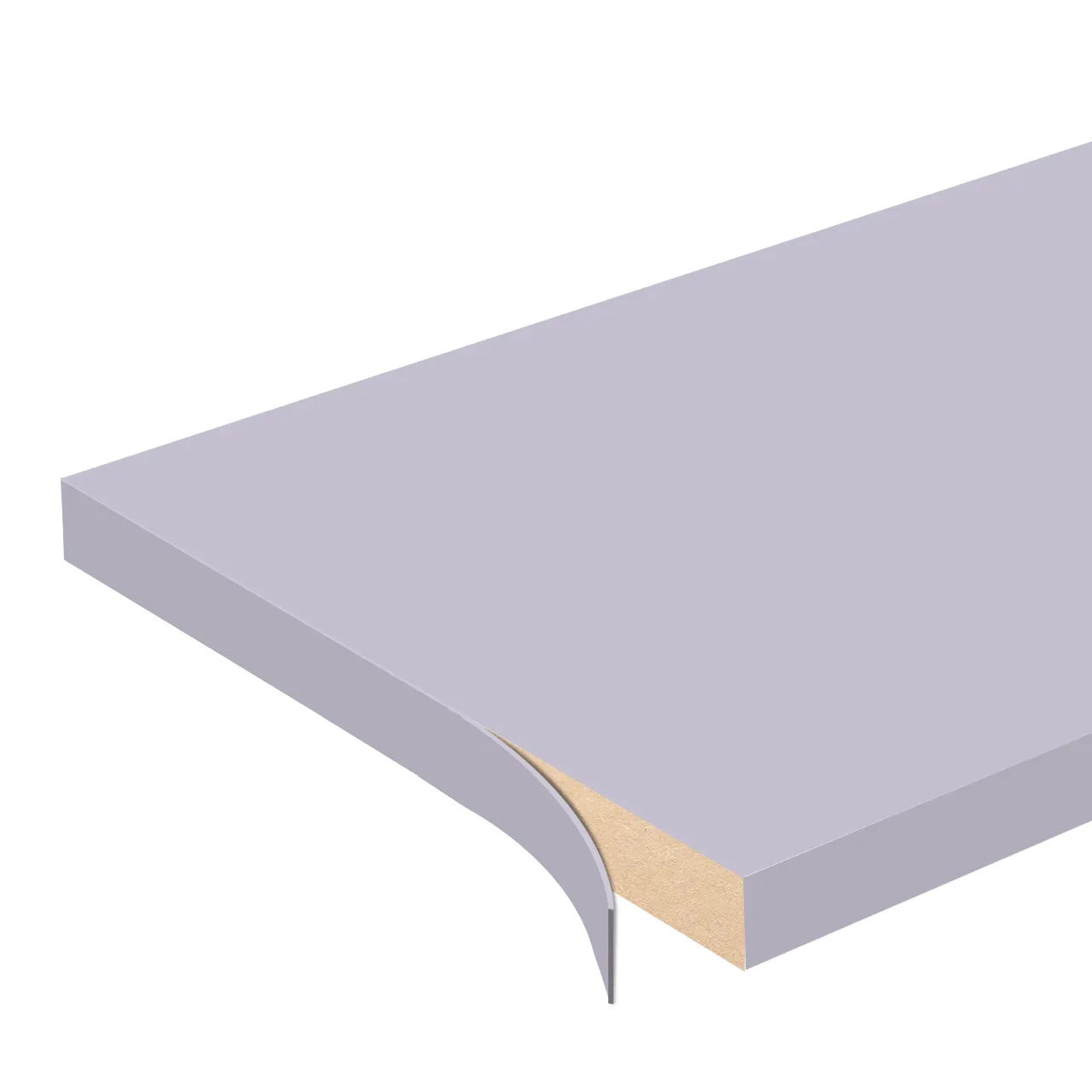

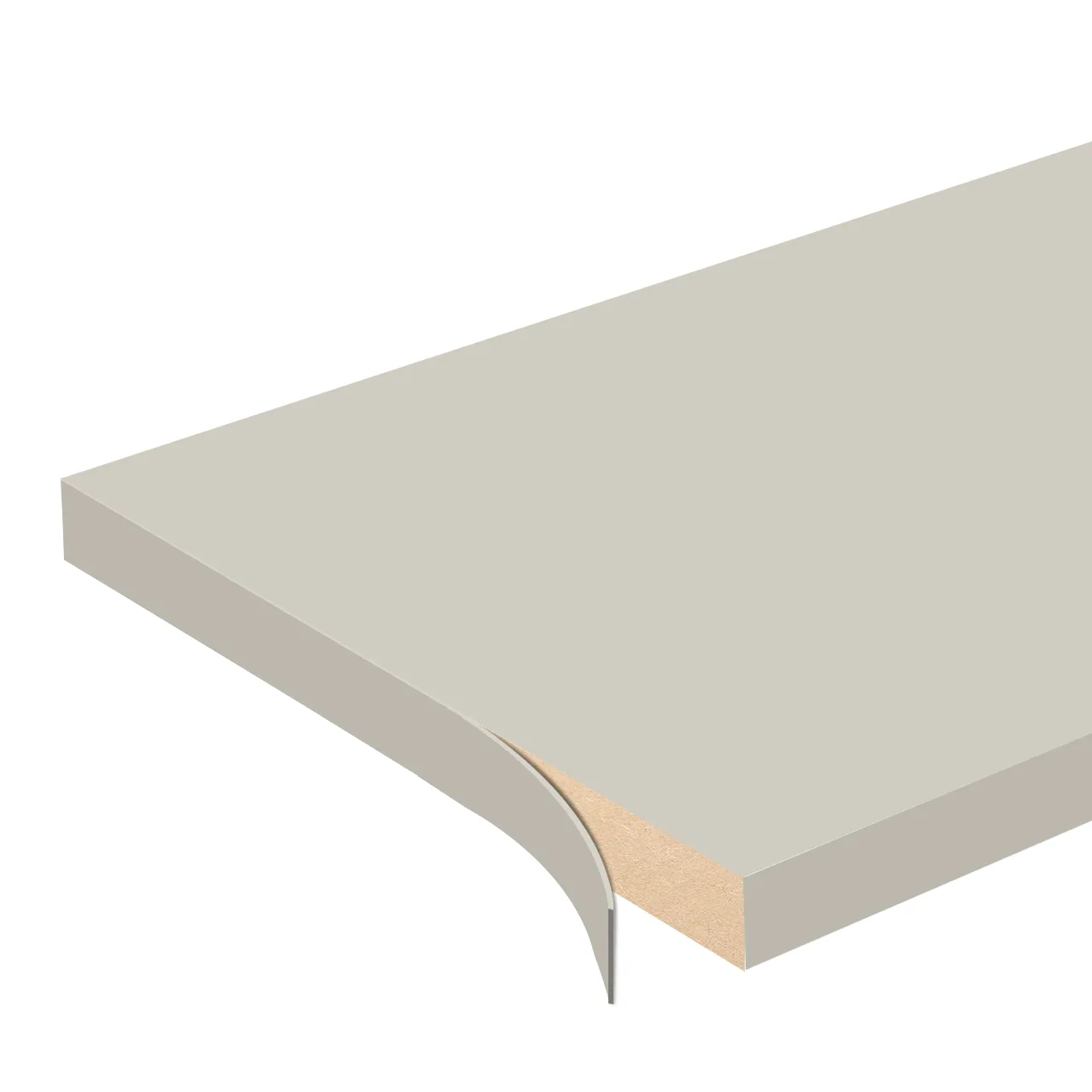

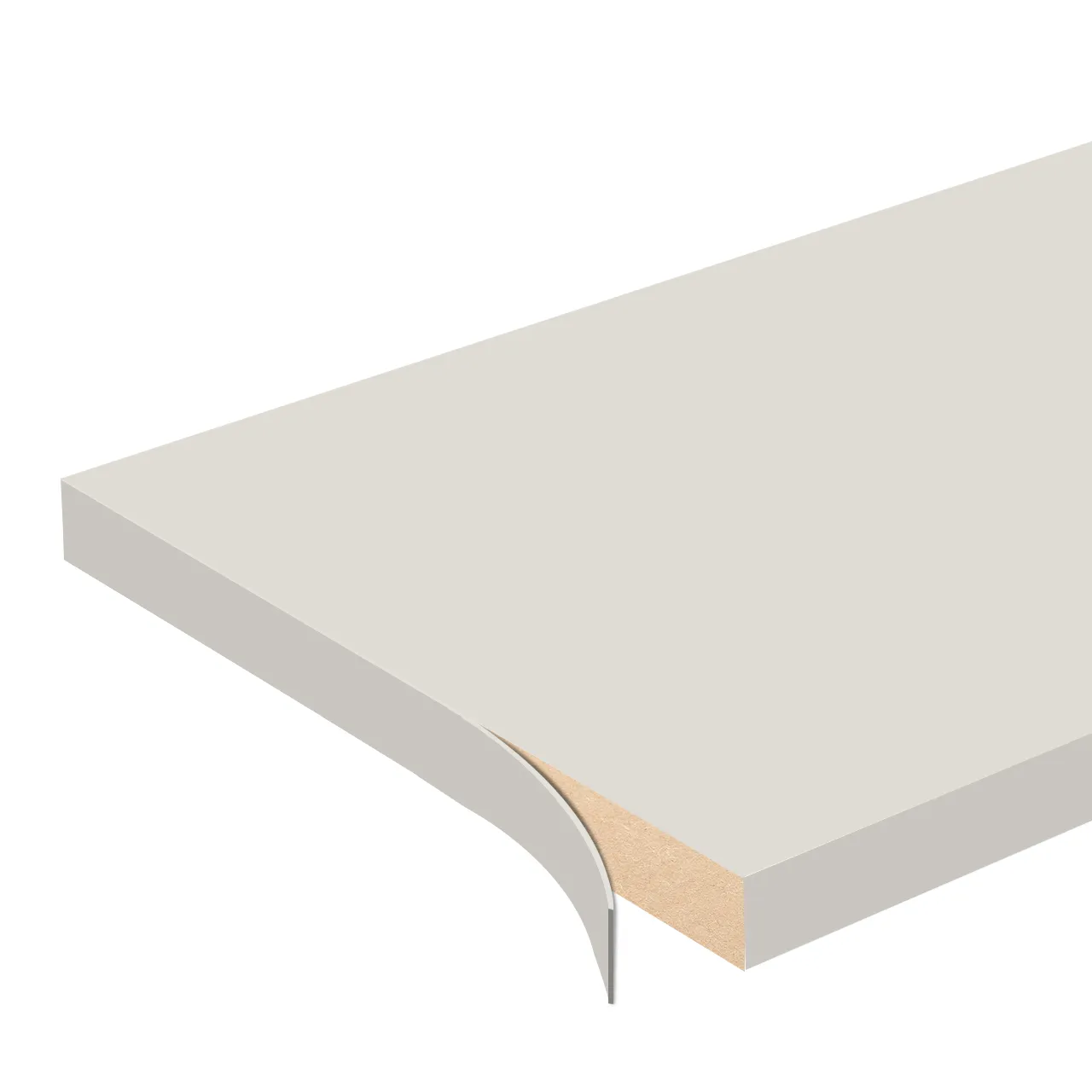

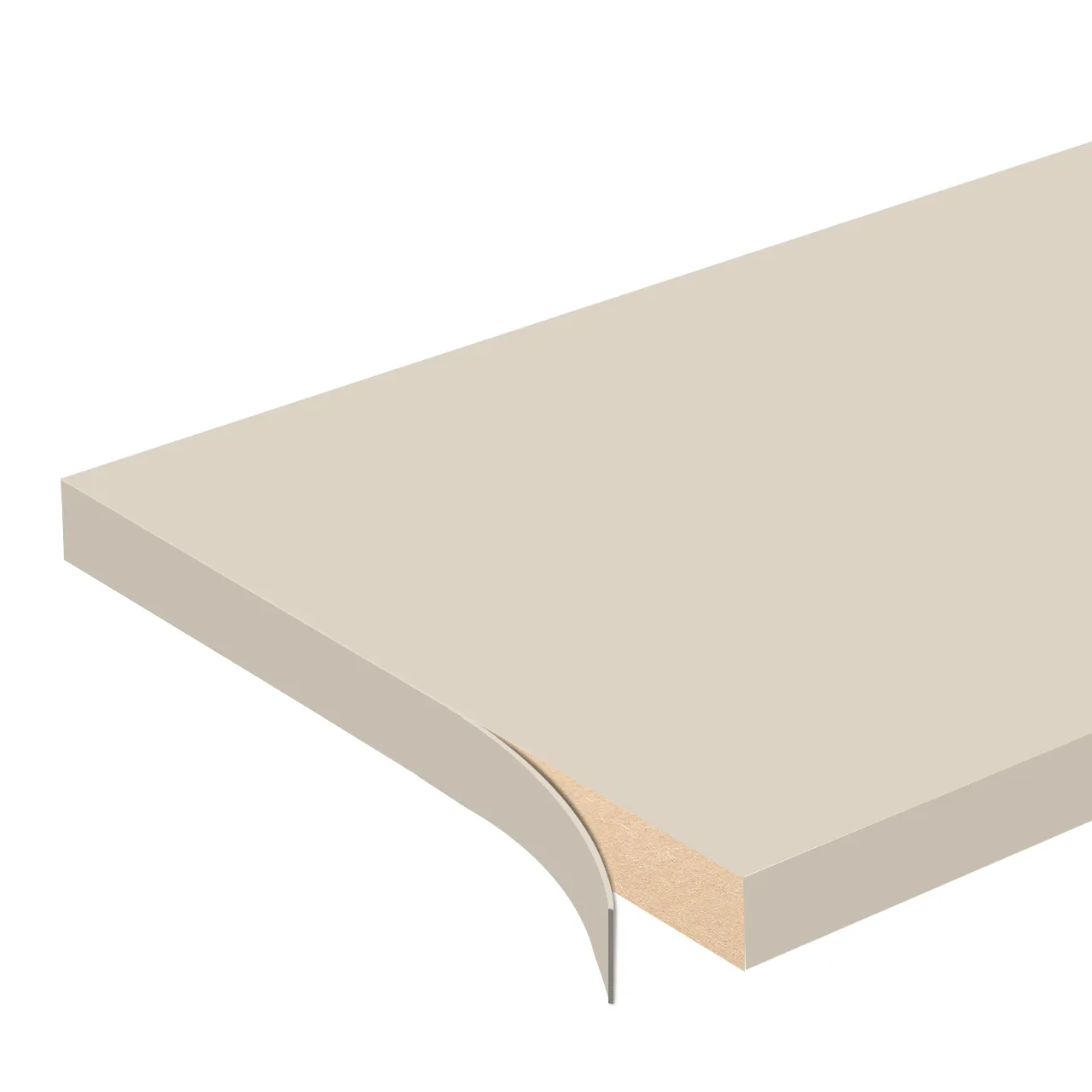

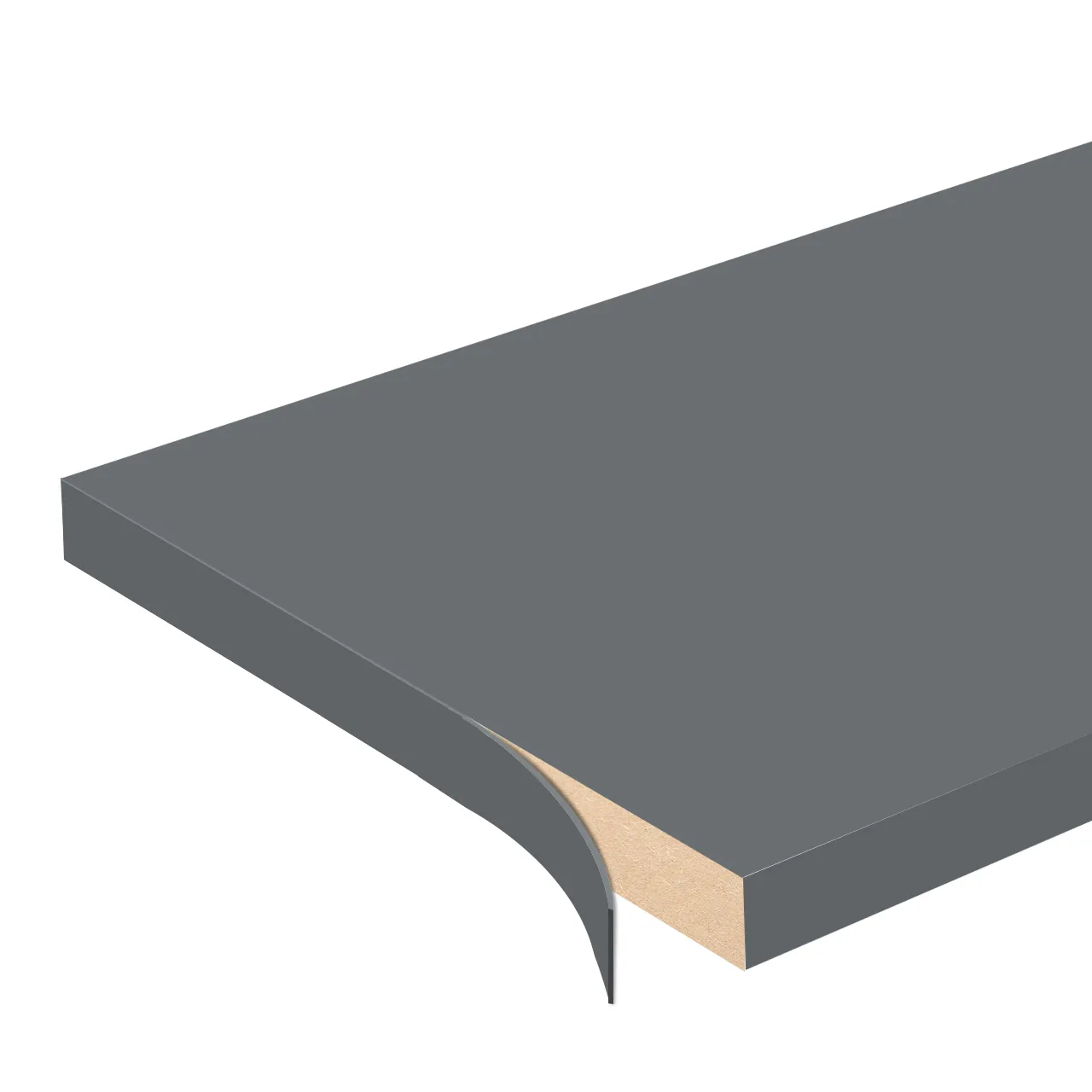

Product Series: ABS Edge Banding High gloss
Regular sizes: 1250*0.4
Thickness of the protective film: 0.04mm
With back coating: Yes
Product Colors:
Size, color and protective film can all be customized.
PETG Solid Color High Gloss Decorative Film Based on polyethylene terephthalate - 1,4 - cyclohexanedimethanol (PETG) as the base material. Through precise formulation of color masterbatch and functional additives, the base film is produced via cast extrusion. Subsequently, a UV direct coating process supplemented with nitrogen protection treatment is applied, ultimately creating a new eco-friendly surface decorative material that combines high gloss texture with excellent abrasion resistance, stain resistance, and chemical resistance.
1 Base film: The core material is PETG (polyethylene terephthalate glycol-1,4-cyclohexanedimethanol), a non-crystalline copolyester formed by the copolymerization of three monomers: terephthalic acid (PTA), ethylene glycol (EG), and 1,4-cyclohexanedimethanol (CHDM).
2 Coating: Utilizing UV direct coating with nitrogen-protected surface treatment technology, the film surface is endowed with core functional properties.
3 Protective film: Paired with a 0.04mm-thick PE protective film for added protection.
4 Back coating: The reverse side of the film is coated with a specialized functional coating that can increase the dyne value to 38 or higher while enhancing adhesion.
930Y-E
909Y-E
932Y-E
801Y-E
114Y-E
836Y-E
734Y-E
732Y-E
750Y-E
736Y-E
738Y-E
009Y-E
408Y-E
207Y-E
314Y-E
617Y-E
Constructed with formaldehyde-free, eco-friendly base materials, certified by multiple authoritative bodies including FDA and SGS for food-grade and medical-grade standards. The materials are non-toxic and harmless, safe for direct human contact, and possess natural antibacterial properties. Additionally, they support recycling and reuse, fully aligning with green health and sustainable development principles.
Leveraging core color control technology, we achieve industry-leading color consistency across different production batches, far exceeding conventional standards. Even under large-scale manufacturing conditions, we ensure exceptional color uniformity, effectively preventing color variations from compromising overall design aesthetics. This delivers precise, long-lasting visual performance.
Boasting high impact resistance, abrasion resistance, and scratch resistance as core strengths, it also delivers outstanding corrosion resistance and anti-yellowing properties. It effortlessly withstands daily friction, accidental impacts, and complex environmental erosion, significantly extending product lifespan while substantially reducing long-term maintenance and replacement costs.
Utilizing advanced UV direct coating technology and a refined high-gloss coating, this finish achieves mirror-like luster and high reflectivity. The light reflection is uniform and refined, free from imperfections like orange peel or sagging. It delivers a strong visual impact, elevating the overall texture and premium feel of the product. Additionally, it offers excellent fingerprint resistance and stain resistance, maintaining a brilliant, like-new appearance over time.
The surface is dense and non-porous, smooth and dust-repellent. Common stains like grease and pen marks wipe away effortlessly, with strong resistance to penetration. Daily maintenance is simple, ensuring long-term cleanliness and a like-new appearance, making it particularly suitable for high-hygiene environments.
Unlike standard PET materials, PETG high-gloss film delivers superior light transmission and color saturation. Its visual effect is profound and rich, significantly enhancing color vibrancy and dimensionality to achieve more impactful decorative results.
| NO. | Inspection Item | Test Method/Basis | Judgment Standard | Inspection Equipment | |
| 1 | Product size | Width | Slitting width ±2.0mm, coil width ±2.0mm. | Tape measure | |
| Thickness (Measure the position of 12 points evenly in the width direction) |
0.10<d≤0.20 ±0.01 | Micrometer | |||
| 0.20<d≤0.40 ±0.02 | |||||
| 0.40<d≤0.80 ±0.03 | |||||
| 2 | Surface treatment effect | Q/WSC-PK-JY-040 Visual inspection, observe from different angles |
Good leveling, smooth surface, no missing coating, oil nests, rainbow patterns, orange peel patterns, flow patterns, water ripple patterns, incomplete leveling, dirt, broken oil residue, and no UV agent on the reverse side. | Visual estimation | |
| 3 | Protective film | Visual inspection | No residual glue stains, scratches, damage, wrinkles, blistering, air bubbles, oil residue debris contamination, or other defects are allowed. The edges should be trimmed evenly. | Visual estimation | |
| 4 | Color deviation | GB/T 17657-2022 in 4.34 | Visually basically consistent, with no obvious differences. The standard sample at the comparison table is △ E≤0.5. | Visual inspection, color difference meter | |
| 5 | Coating hardness | GB/T 17657-2022 in 4.58 | Hardness ≥H, | Electric pencil hardness tester / weight | |
| 500g weight, Mitsubishi pencil 45° scratch, Note: The upper end is sampled at the 100mm position for testing, and one sample is taken from the left, middle, and right for testing. Each sample is tested 5 times, and it is qualified if there are no scratches/scratches at least 4 times. | |||||
| 6 | Wear resistance | ASTM F2496 ISO 1518-1 ISO 1518-2 GME 60248 D42 1775 |
≥50r The coating surface is subjected to 750g/cm2 pressure, and after 50 cycles, there are slight dot-like scratches or no scratches at the friction position. |
Reciprocating abrasion testing machine /#0000 steel wool | |
| 7 | Scratch resistance | Ordinary | / | / | / |
| Scratch resistance Customized |
4.42 in GB/T17657-2022 | 1.2N (60g), | Scratch resistance tester | ||
| ① More than 90% of the specimen surface has no continuous scratches, | |||||
| ② Coating thickness ≤10um, | |||||
| ③ Front and back sides, horizontal and vertical winding directions on a 3-inch core, no cracking is OK. | |||||
| 8 | Surface stain resistance | 4.43 in GB/T17657-2022 | ① After 16 hours, there is no obvious discoloration after the stain resistance test. | Huang Yu liquid shoe polish, Nestle, coffee, 80℃ water, soy sauce, acetone, cola, aged vinegar, red ink, 6824 oily pen | |
| ② After 30 minutes, there is no obvious discoloration after the acetone test. | |||||
| ③ Red ink can be wiped off with clean water. | |||||
| ④6824 Oily pen can be wiped off with dry wiping. | |||||
| 9 | Contact Angle | GB/T 30693-2014 | Test water with 3 microliter water droplets, contact angle ≥88 . | Water contact angle tester | |
| 10 | Adhesion | Conventional | 4.57 in GB/T17657-2022 | ≥4B, 3 times for each of the left, middle, and right hundred-grid tests. | 3M#600/681 (alternative 610) test tape/cross cutter |
| Boiling in water | / | ||||
| 11 | Yellowing resistance | GB/T23983-2009 | △E≤3 | UV yellowing resistance test chamber | |
| (168hUVA340) | 4.32 in GB/T17657-2022 | (Surface oil: △E≤0.7). | |||
| 12 | Lightfastness | 4.31 in GT/T17657-2022 | ≥ Level 3. | Xenon arc lamp test chamber, 8-level blue wool standard sample, gray sample card | |
| 13 | Rewinding | Packaging operation specification | 1250mm × 3-inch compression-resistant foam tube or polished tube, smooth surface, no unevenness, neat winding, no running edges, 250 meters/roll, protective film facing outward. | Visual estimation | |
| 14 | Product packaging | Packaging operation specification | The tape is dark blue tape. After processing, first wrap it with stretch film, and then wrap the product horizontally with tape for 3-5 turns to prevent the side of the product from being misaligned. The outer packaging is packaged with pearl foam packaging paper printed with LOGO, and both ends of the product are sealed and packaged with paper corner protectors and hardened corner protectors. The packaging should be complete and undamaged. | Visual estimation | |
| 15 | Product identification samples |
Visual inspection | ① Paste one large label (58mm*218mm, 3 in total) with all the same information on the front of the outer packaging paper logo, flush with the bottom of the corner protector, at the top middle position, and on the back of the A4 sample (210mm*297mm) in the center position. The identification should be standardized, and the content should be comprehensive, clear, and correct. | Visual estimation | |
| ② The content on the label should include: product name, product series, product color, protective film name, product item number, product specifications, product quantity, base material number, surface treatment number, production date, and other information. | |||||
| ③ Label information, physical object, A4 sample, the three must be consistent. | |||||
The product packaging adopts carefully designed outer packaging combined with protective film,The overall visual clarity is clear and can effectively protect the product,More helpful for customers to quickly identify the brand and strengthen their brand impression.
1 Flat Lamination process: Flat lamination applies decorative film onto flat boards using PUR or hot-melt adhesive. This process delivers a smooth, seamless surface with excellent durability and a premium look. It is ideal for PET and PP films, providing superior scratch resistance, heat stability, and long-lasting color.
2 Wrapping process: Wrapping uses PUR glue to cover decorative films on profiles such as edge bandings, moldings, and skirting boards. PET and PP films offer higher durability and color consistency, ensuring a perfect match with laminated panels.
3 Vacuum Forming Process: Vacuum forming shapes heated decorative film over 3D surfaces using vacuum pressure. It's widely used for routed MDF doors and complex profiles. While traditionally applied with PVC films, the market is now shifting toward more eco-friendly alternatives.

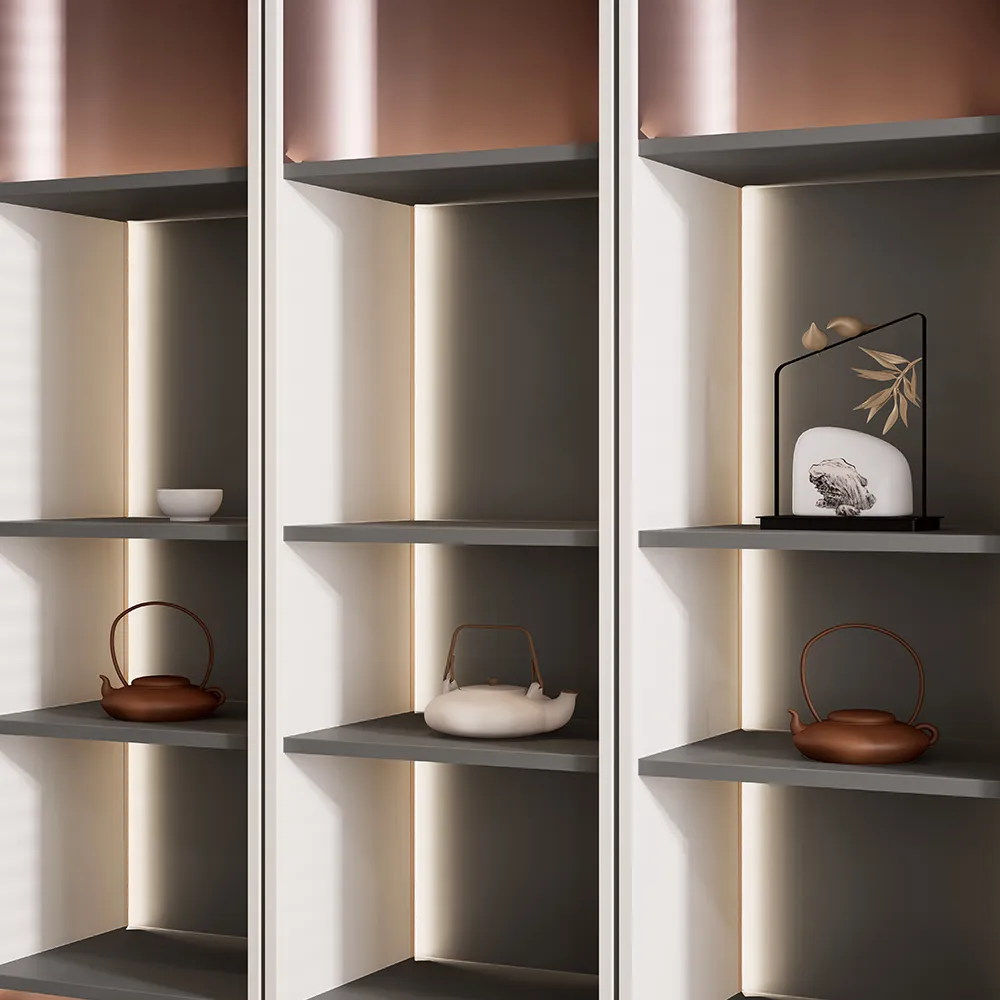

1 Living Room Space
2 Bedroom Space
3 Dining & Kitchen Space
