Product Series: Metal Texture
Regular sizes: 1250*0.35
Thickness of the protective film: 0.06mm
With back coating: Yes
Product Colors:
Size, color and protective film can all be customized.
PETG Metal Texture Decorative Film utilizes PETG (Polyethylene Terephthalate-1,4-Cyclohexanedimethanol) as its core material. Through precise blending of metallic color masterbatch and functional additives, it undergoes cast extrusion molding to form the base film. Subsequently, surface treatment is applied using a 172nm nanophotolithography process with nitrogen protection, resulting in an innovative eco-friendly decorative material with a metallic finish. This material not only delivers exceptional texture but also exhibits outstanding resistance to abrasion, staining, chemical corrosion, and yellowing.
1 Base film: PETG (Polyethylene Terephthalate-1,4-Cyclohexanedimethanol) is a non-crystalline copolyester, formed by the copolymerization of three monomers: terephthalic acid (PTA), ethylene glycol (EG), and 1,4-cyclohexanedimethanol (CHDM).
2 Coating: Utilizes a 172nm nanophotonic process with nitrogen-protected excimer treatment to impart core functional properties to the film surface.
3 Protective film: Paired with a 0.06mm-thick PE protective film for added protection.
4 Back coating: Specific functional coating is applied to the back of the decorative film to increase the dynary value (up to 38 or more), and enhance adhesion.
940YS - Ⅱ S
772YS - Ⅱ S
852YS - Ⅱ S
854YS - Ⅱ S
312YS - Ⅱ S
853YS - Ⅱ S
521YS - Ⅱ S
615YS - Ⅱ S
Reproduces the delicate luster and texture of metal materials with uniform, non-glare light reflection. Its visual texture closely resembles real metal, achieving a metallic finish without relying on metal substrates. This delivers a more sophisticated decorative effect.
Inheriting the properties of PETG substrate, it offers excellent resistance to abrasion, staining, and chemical corrosion, ensuring minimal damage during daily use. With strong resistance to yellowing and aging, it maintains a consistent metallic luster even after prolonged use.
The raw materials are eco-friendly and odorless, meeting environmental standards with no release of harmful substances during use. The material offers excellent flexibility, making it easy to cut and apply to various substrates (such as panels and profiles), ensuring high installation efficiency.
Compared to genuine metal materials, it offers lower costs and eliminates the need for complex processing techniques. It enables mass production with diverse color and finish options, meeting various decorative requirements.
| NO. | Inspection Item | Test Method/Basis | Judgment Standard | Inspection Equipment | |
| 1 | Product Size | Width | Slicing width±2.0mm,Coil width±2.0mm. | Tape measure | |
| Thickness | 0. 10<d≤0.20 ±0.01 0.20<d≤0.40 ±0.02 0.40<d≤0.80 ±0.03 |
Micrometer | |||
| 2 | Surface treatment effect | Q/WSC-PK-JY-048 Visual inspection , from different perspectives |
The surface must be smooth with uniform color. There should be no missed coating, dirt, impurities, or oil residue. The reverse side must be free of UV coating agent. When inspected with a high-intensity flashlight from different angles, no dense pits or bumps are permitted, and no transfer film wrinkle lines or patterns are allowed. For textured glitter silver finishes, the texture must be clear and consistent. | Visual estimation | |
| 3 | Protective film | Conventional | Visual inspection | The following defects are not allowed: adhesive residue, scratches, damage, wrinkles, lifted film, bubbles, or contamination from oil debris. Edges must be trimmed neatly. | Visual estimation |
| Temperature resistance | GB/T 17657-2022 | Constant Temperature and Humidity Test Chamber，Condition: 60°C, 50–60% relative humidity, 168 hours.After film removal, the product surface must show no adhesive residue.A minimum of 3 samples are required for testing. | Constant temperature and humidity test chamber | ||
| Resistance to cold and heat cycle | Constant Temperature and Humidity Test Chamber: One test cycle consists of: 60°C at 50-60% relative humidity for 4 hours, followed by -20°C at 0% relative humidity for 4 hours. A total of 6 cycles shall be performed.After the final cycle, the test is concluded when the temperature recovers to approximately 25-30°C. The test samples shall then be placed under standard atmospheric conditions for 2 hours.Upon completion of this conditioning period, the samples shall be inspected. After peeling off the protective film, the product surface shall show no adhesive residue, and the protective film itself shall show no signs of embrittlement. A minimum of 3 samples are required for this test. |
||||
| 4 | Color | GB/T 17657-2022 in 4.34 | Visual color must be essentially consistent with no significant variation. When compared to the standard reference sample, the color difference must be ΔE ≤ 1.5. (mainly visual, supplemented by color difference value). | Visual inspection, color difference meter | |
| 5 | Coating hardness | GB/T 17657-2022 in 4.58 | Hardness ≥H, Test Method: Using a Mitsubishi pencil with a 500g load at a 45° angle.Note: Samples shall be taken from the 100mm position from the top edge. One sample each from the left, middle, and right sections must be tested. For each sample, the test is performed 5 times. A sample is considered acceptable if no scratch or gouge is observed in at least 4 out of the 5 tests. | Electric pencil hardness tester / weight | |
| 6 | Wear resistance | ASTM F2496 ISO 1518-1 ISO 1518-2 GME 60248 D42 1775 |
≥50r, A pressure of 750 g/cm² is applied to the coated surface.After 50 cycles, the abraded area may show only slight pinpoint scratches or no scratching at all. |
Reciprocating abrasion testing machine/#0000steel wool | |
| 7 | Glossiness | High gloss | GB/T9754-2007 | / | Gloss Meter |
| Matte | The sample is placed flat on the test bench, and the gloss meter angle is adjusted to60 °test. The test results are:20 °angle≤1.5,60 °angle≤6.0,85 °angle≤40.0. | ||||
| 8 | Scratch resistance | Ordinary | / | / | / |
| Scratch resistance (Customized) |
GB/T17657-2022 in 4.42 | 1.2N(60g), ① More than90%of the surface of the test piece has no continuous scratches ② Coating thickness≤10um ③ Front and back sides , horizontal and vertical winding to3inch core, no cracking isOK |
Scratch resistance tester | ||
| 9 | Surface stain resistance | GB/T17657-2022 in 4.43 | ① After 16 hours, there is no obvious discoloration after the pollution resistance test. ② After 30 minutes, there is no obvious discoloration after the acetone test. ③ Red ink can be wiped off with clean water. ④ 6824 Oily pen can be wiped off with 75% alcohol. ⑤ 6824 Oily pen can be wiped clean with nano sponge magic eraser dry wipe. |
Huang Yu liquid shoe polish, Nestlé coffee 80℃ water, soy sauce, acetone, cola, aged vinegar, red ink, 6824 oily pen, 75% alcohol, nano sponge magic eraser | |
| 10 | Contact Angle | GB/T 30693-2014 | Test water with 3 microliters of water, contact angle ≥88 °. | Water contact angle tester | |
| 11 | Adhesion | Conventional | GB/T17657-2022 in 4.57 | ≥4B, left, middle and right hundred grid tests 3 times each. | 3M#600/681 (replacement 610) Test tape/gridder |
| 12 | Yellowing resistance (168hUVA340) |
GB/T23983-2009 GB/T17657-2022 in 4.32 |
△ E≤3 (Surface oil: △ E≤0.7). |
UV yellowing resistance test chamber | |
| 13 | Lightfastness | GT/T17657-2022 in 4.31 | ≥3level. | Xenon arc lamp test chamber,8grade blue wool standard sample, gray card | |
| 14 | Winding | Packaging operation specification | 1250mm×3inch compression-resistant polished pipe, smooth surface, no unevenness, neatly rolled, no edge running,250meters/roll , protective film facing outwards. | Visual estimation | |
| 15 | Product packaging | Packaging operation specification | The tape is dark brown tape. After processing, first wrap it with stretch film, and then wrap the product horizontally with tape3-5laps to prevent the side of the product from being misaligned. The outer packaging is packaged with pearl foam packaging paper printed withLOGO, and both ends of the product are sealed and packaged with paper corner protectors and hardened corner protectors. The packaging should be complete and undamaged. | Visual estimation | |
| 16 | Product identification, sample | Visual inspection | ① On the outer packaging paper, aligned with the top center position directly above the logo and below the corner protectors, affix one large label (58mm*218mm, 3 labels in total) with identical information, centered on the back of an A4 sample (210mm*297mm). The labeling should be standardized, comprehensive, clear, and accurate. ② The label should include the following information: Product Name, Product Series, Protective Film Name, Product Article Number, Product Specifications, Product Quantity, Base Material Number, Surface Treatment Number, Production Date, and other information. ③ Label information, physical object, A4 sample, the three must be consistent. |
Visual estimation | |
*For specific performance data and parameters, please download them from the Resource Center.

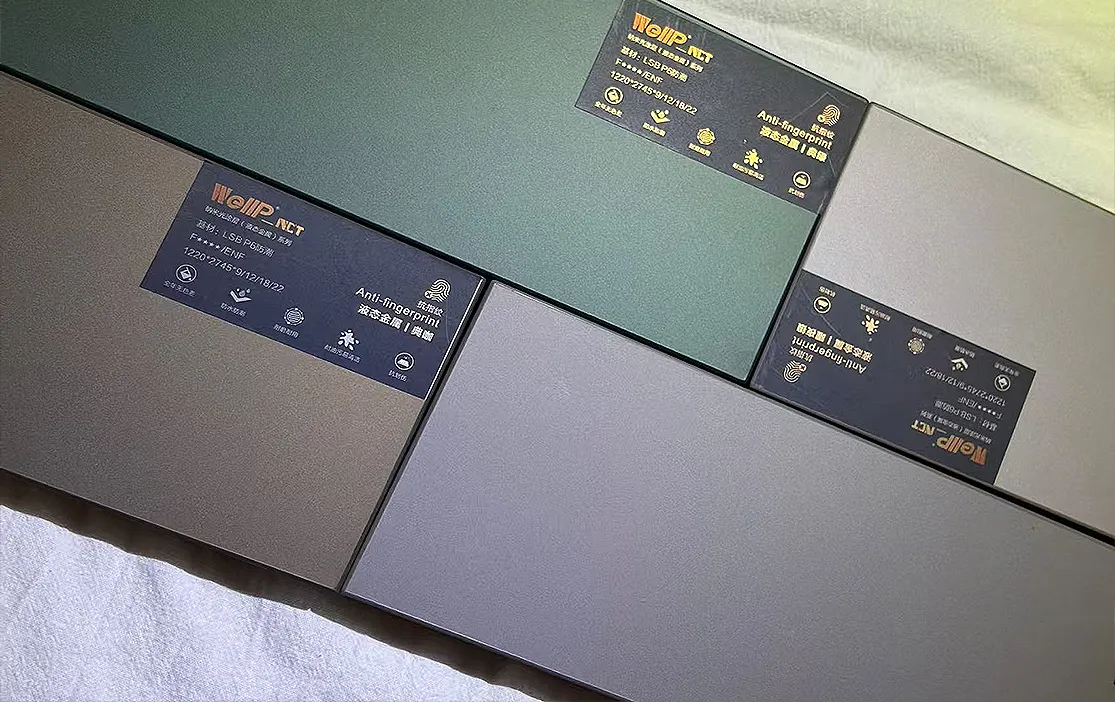

The product packaging adopts carefully designed outer packaging combined with protective film,The overall visual clarity is clear and can effectively protect the product,More helpful for customers to quickly identify the brand and strengthen their brand impression.

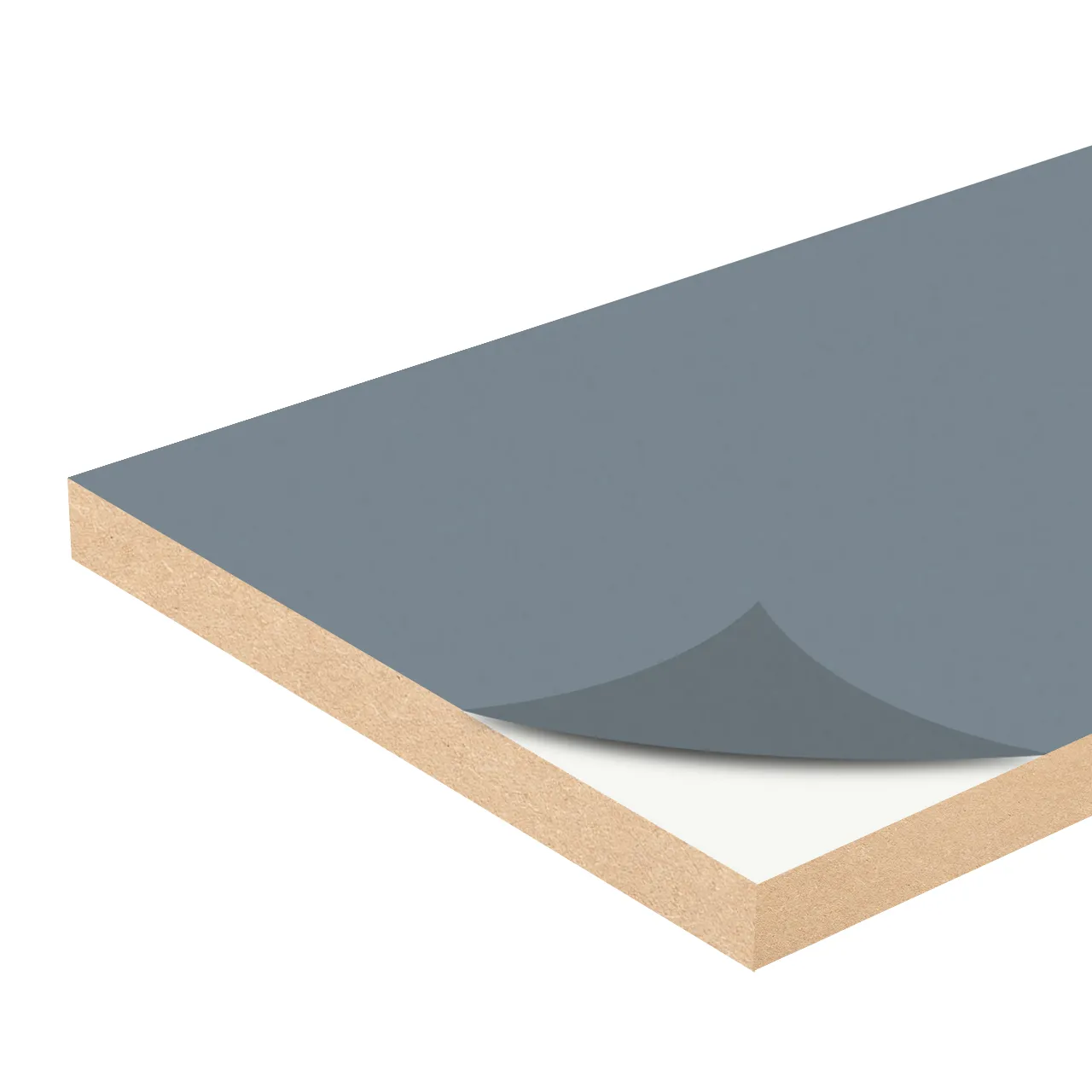

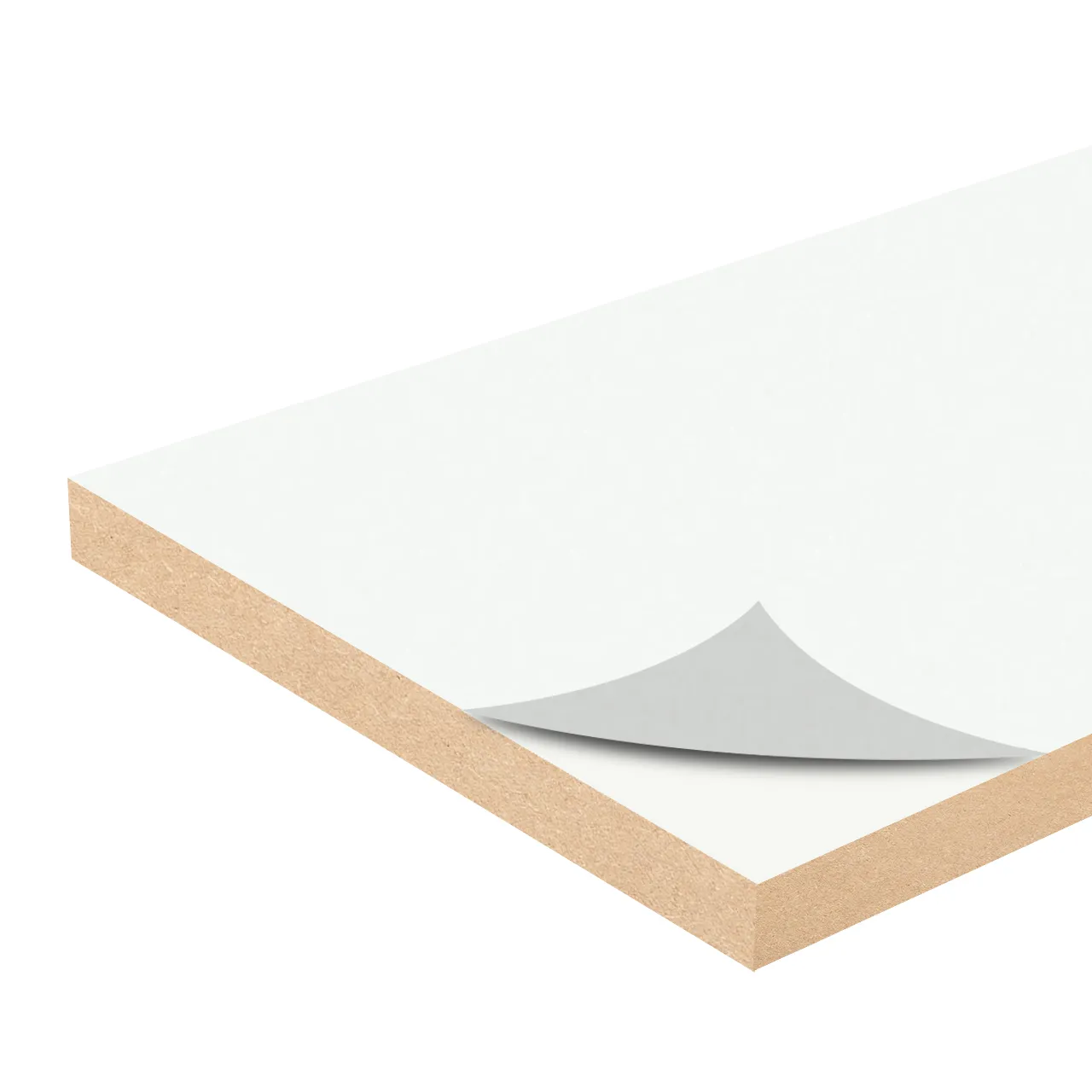

1 Flat Lamination Process: Flat lamination applies decorative film onto flat boards using PUR or hot-melt adhesive. This process delivers a smooth, seamless surface with excellent durability and a premium look. It is ideal for PET and PP films, providing superior scratch resistance, heat stability, and long-lasting color.
2 Wrapping Process: Wrapping uses PUR glue to cover decorative films on profiles such as edge bandings, moldings, and skirting boards. PET and PP films offer higher durability and color consistency, ensuring a perfect match with laminated panels.
Special Note: Wrapping Process requires customized specifications and coating formulations.
3 Vacuum Forming Process: Vacuum forming shapes heated decorative film over 3D surfaces using vacuum pressure. It's widely used for routed MDF doors and complex profiles. While traditionally applied with PVC films, the market is now shifting toward more eco-friendly alternatives.
Special Note: Vacuum Forming Process requires customized specifications and coating formulations.

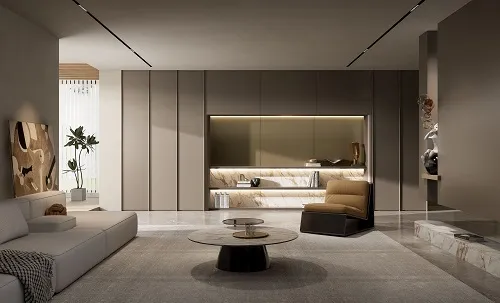

1 Living Room Space
2 Bedroom Space
3 Dining & Kitchen Space
