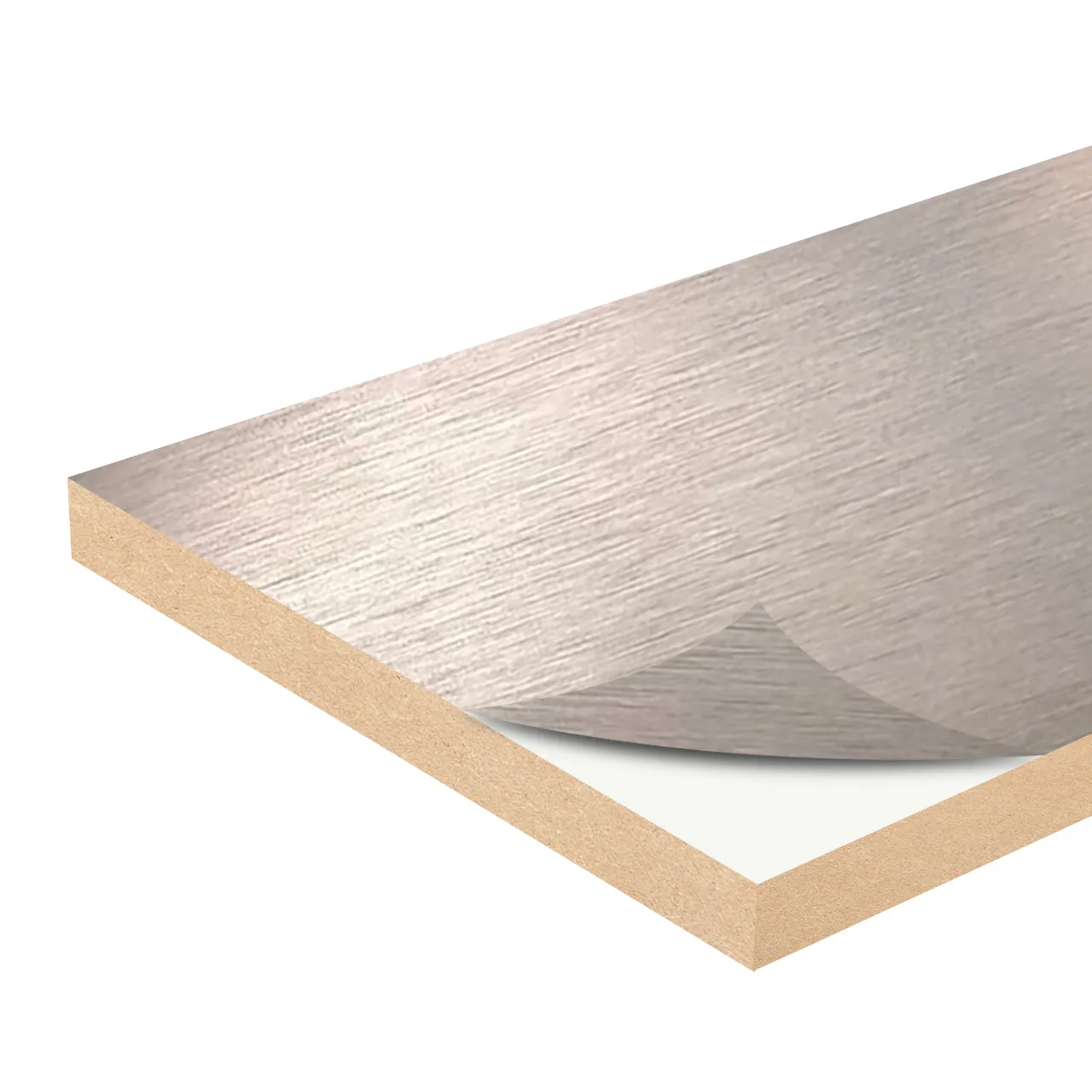

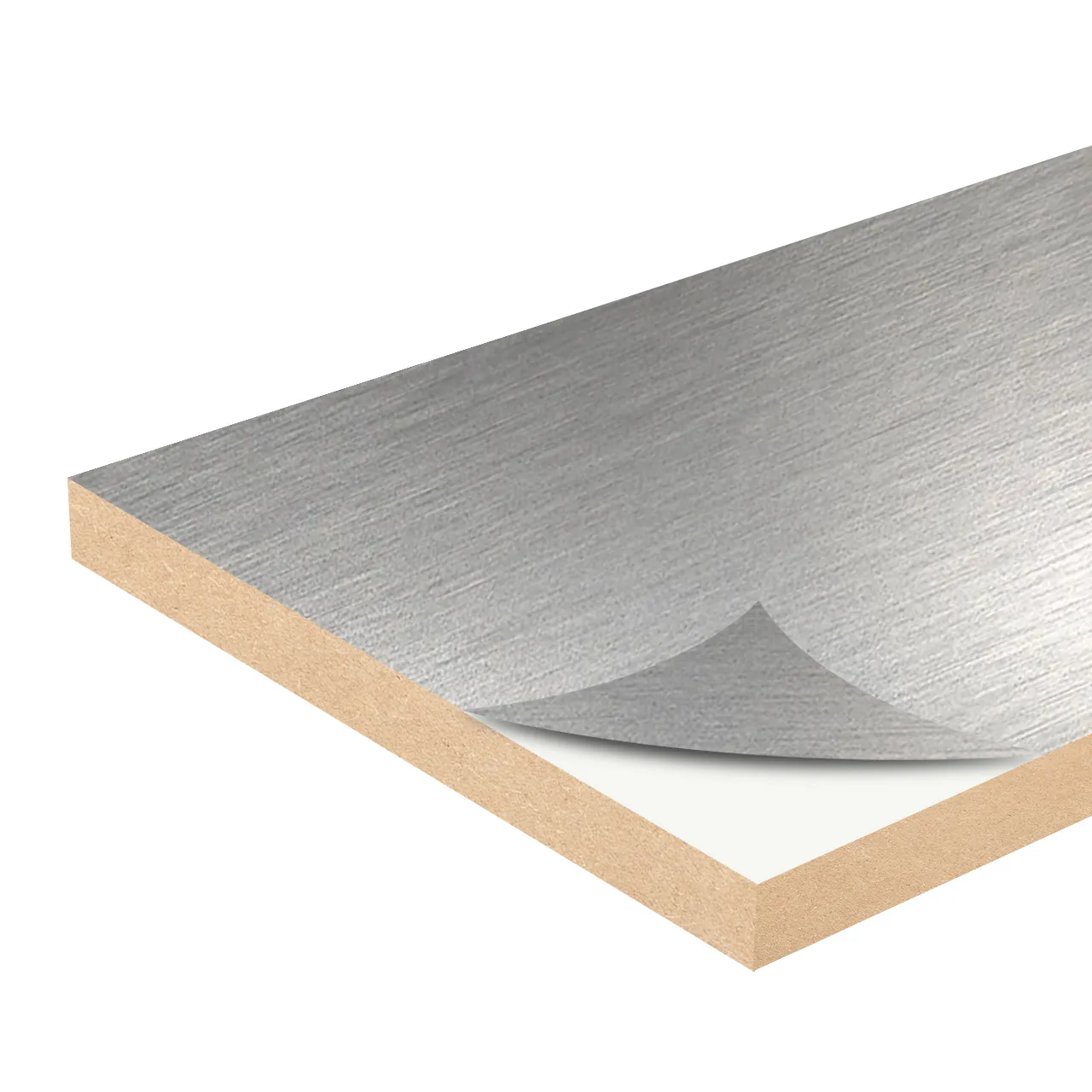

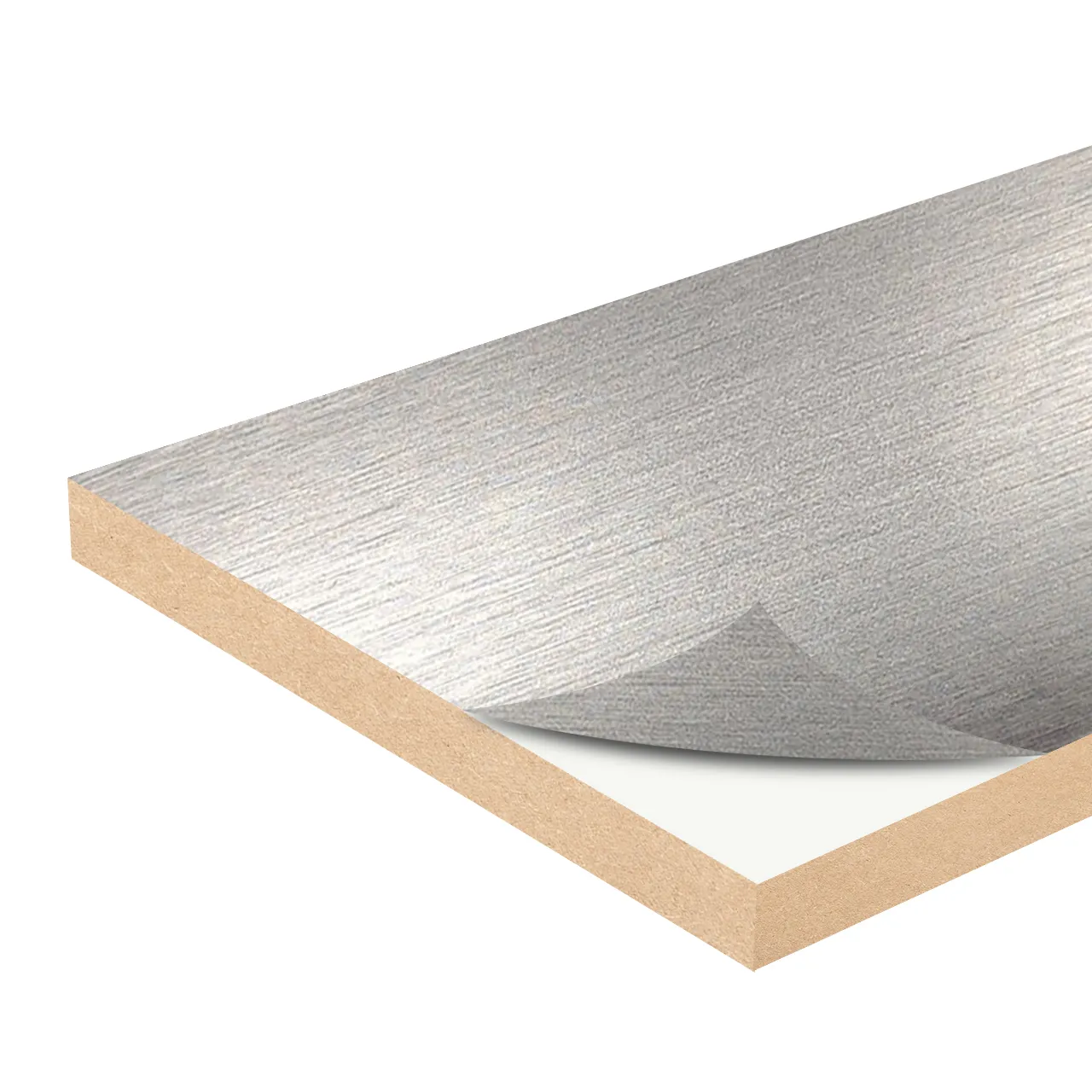

PET Decorative Film - Roll
Brushed Metal (Coming soon)

Product Series: Brushed Metal

Regular sizes: 1250*0.35

Thickness of the protective film: 0.06mm

With back coating: Yes

Product Colors:

PET Decorative Film - Roll

Size, color and protective film can all be customized.

Phone: +86 17322379627

Whatsapp: +86 17322379627

E-Mail: official@wellp.com

INQUIRY NOW

Product Details Introduction

Product Introduction:

PET Brushed Metal Decorative Film is a novel decorative material featuring a metallic brushed texture achieved through specialized processing of a PET film substrate. The production process involves: first pre-treating the PET substrate to activate its surface, then dynamically drawing the film using mechanical or chemical methods. Subsequently, vacuum deposition technology is employed to deposit a layer of metal onto the drawn PET film surface, forming a metallic coating. Finally, a self-healing protective coating is applied and cured to create a protective layer, resulting in the finished PET Brushed Metal Decorative Film.

1 Base film: PETG (Polyethylene Terephthalate-1,4-Cyclohexanedimethanol) is a non-crystalline copolyester, formed by the copolymerization of three monomers: terephthalic acid (PTA), ethylene glycol (EG), and 1,4-cyclohexanedimethanol (CHDM).

2 Coating: UV transfer coating process

3 Protective film: Paired with a 0.06mm-thick PE protective film for added protection.

4 Back coating: Specific functional coating is applied to the back of the decorative film to increase the dynary value (up to 38 or more), and enhance adhesion.

Product Colors

WellP PET Film Roll - Canonical White

940YS - Ⅱ S

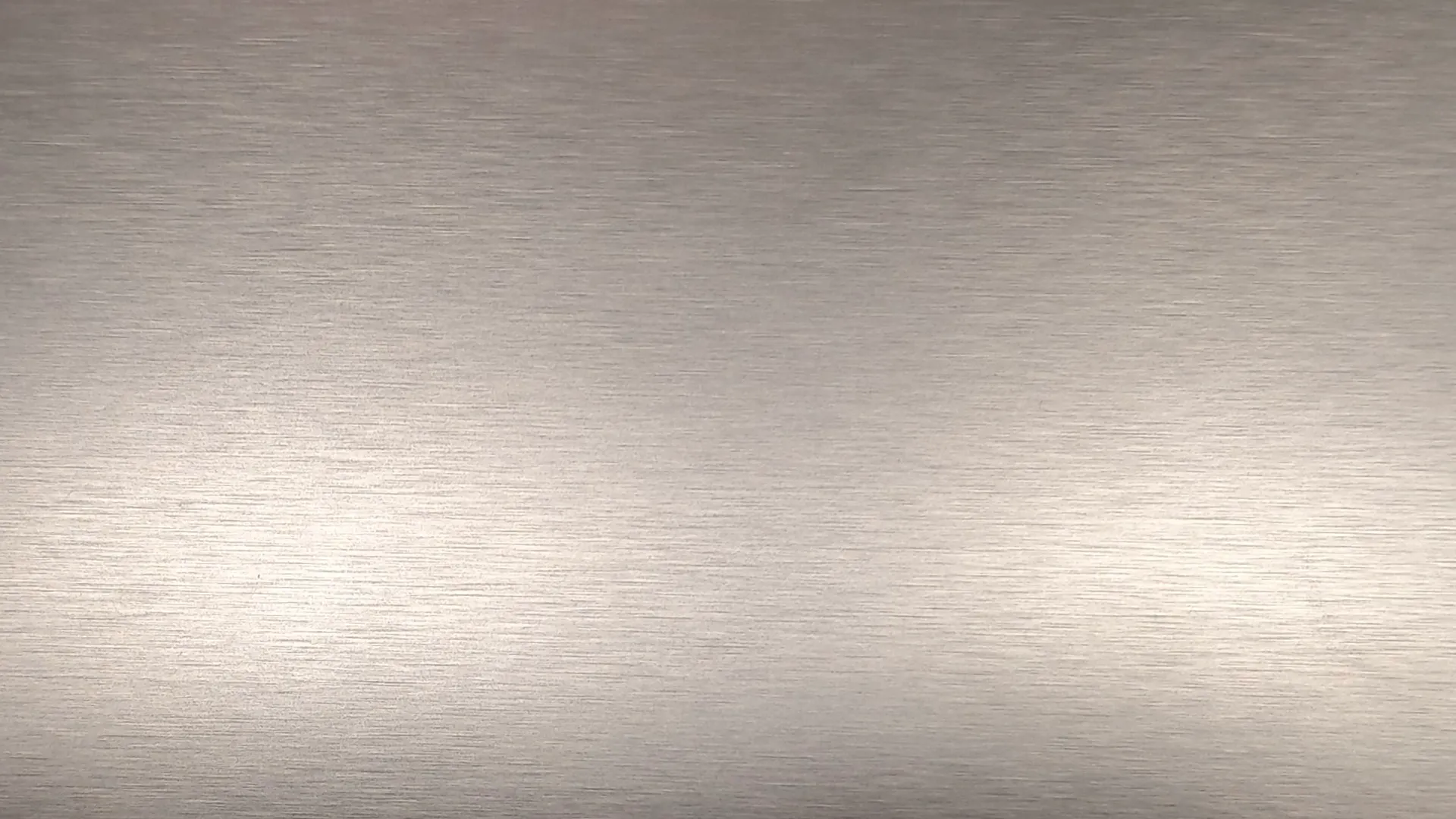

WellP PET Film Roll - Canonical Gray

772YS - Ⅱ S

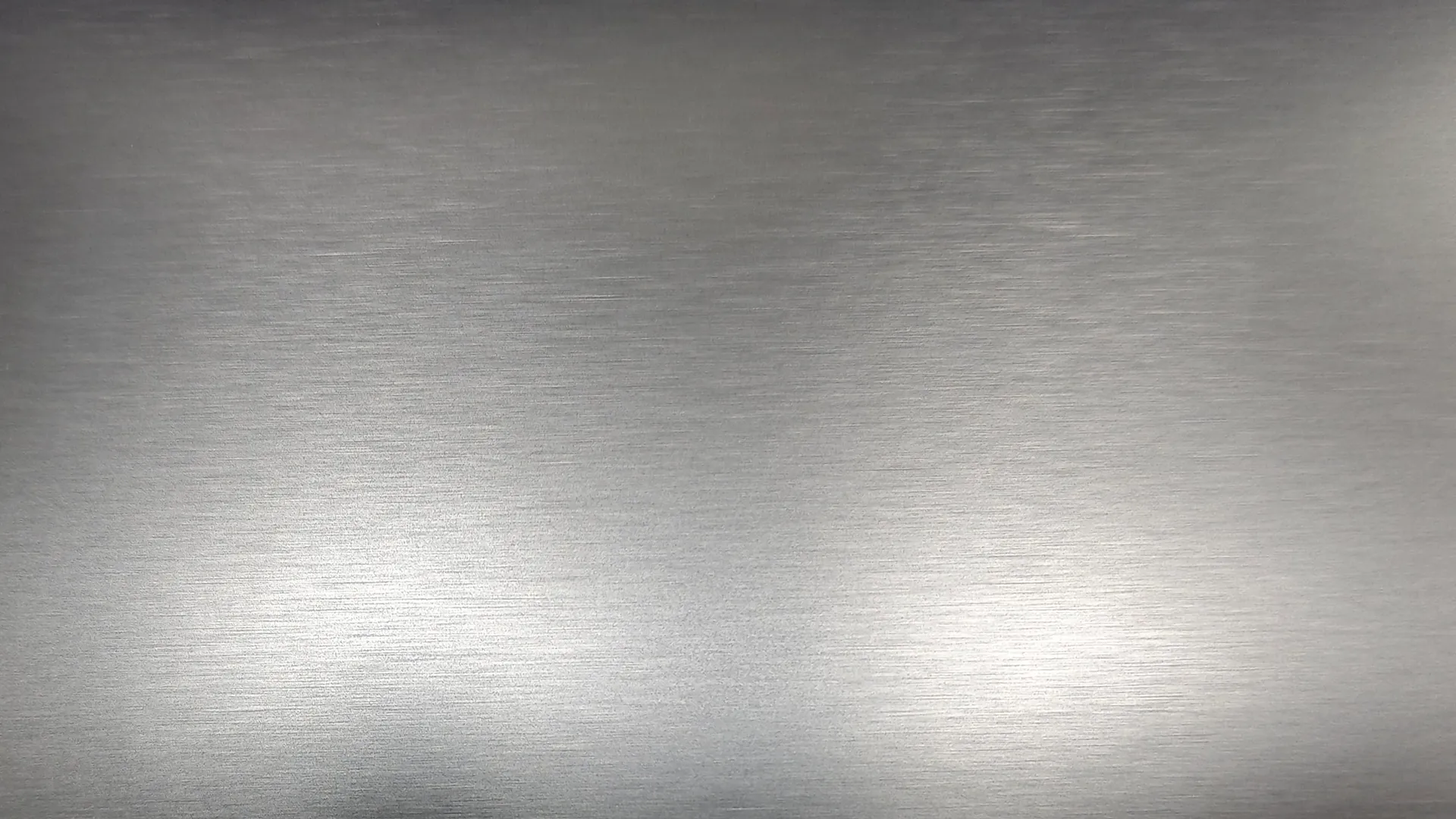

WellP PET Film Roll - Canonical Brown

852YS - Ⅱ S

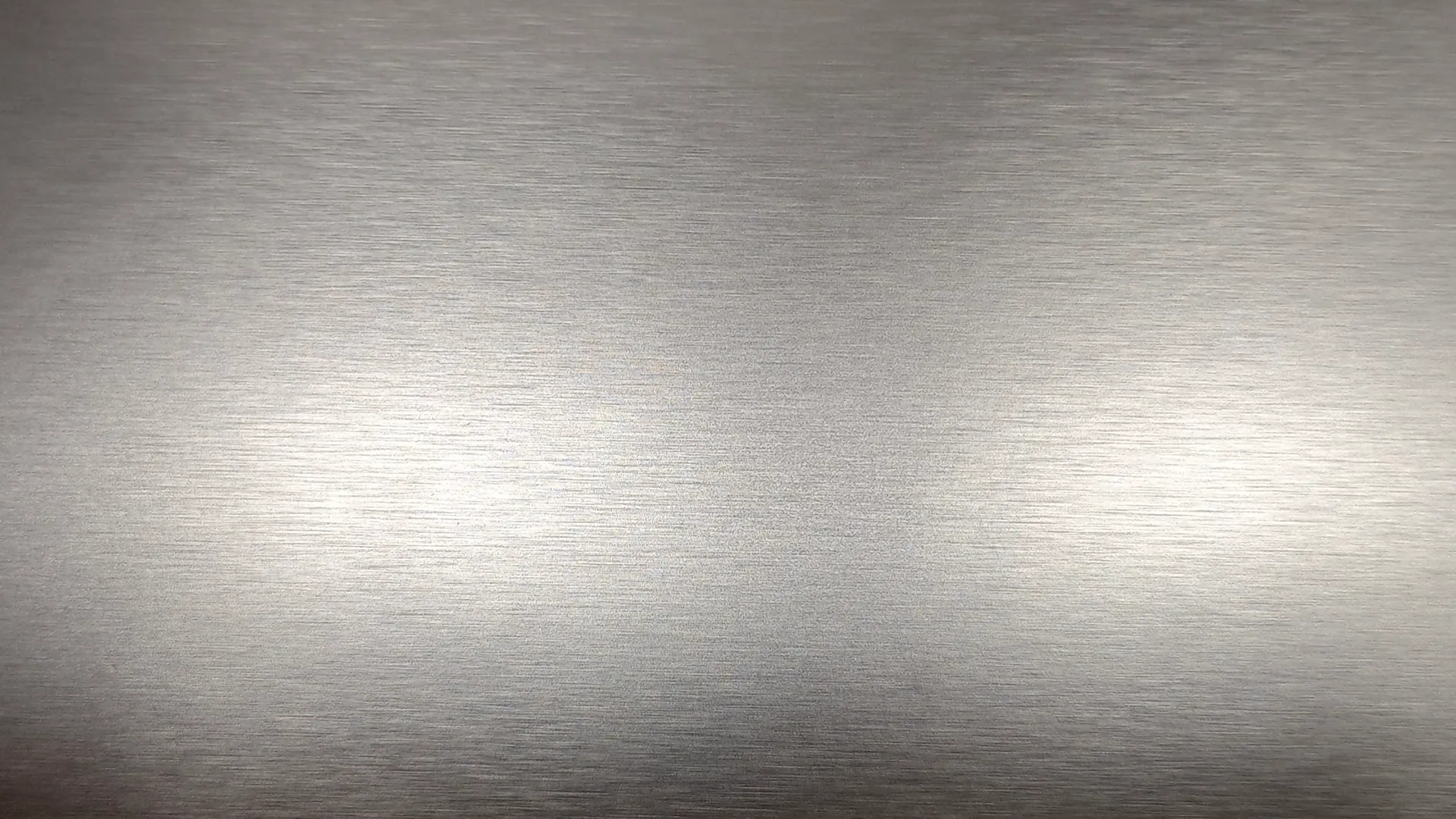

WellP PET Film Roll - Radiant Night Silver

854YS - Ⅱ S

Product Performance Parameters

NO.	Inspection Item		Test Method/Basis	Judgment Standard	Inspection Equipment
1	Product Size		Width	Slicing width±2.0mm,Coil width±2.0mm.	Tape measure
1	Product Size		Thickness	0. 10<d≤0.20 ±0.01 0.20<d≤0.40 ±0.02 0.40<d≤0.80 ±0.03	Micrometer
2	Surface treatment effect		Q/WSC-PK-JY-048 Visual inspection , from different perspectives	The surface must be smooth with uniform color. There should be no missed coating, dirt, impurities, or oil residue. The reverse side must be free of UV coating agent. When inspected with a high-intensity flashlight from different angles, no dense pits or bumps are permitted, and no transfer film wrinkle lines or patterns are allowed. For textured glitter silver finishes, the texture must be clear and consistent.	Visual estimation
3	Protective film	Conventional	Visual inspection	The following defects are not allowed: adhesive residue, scratches, damage, wrinkles, lifted film, bubbles, or contamination from oil debris. Edges must be trimmed neatly.	Visual estimation
		Temperature resistance	GB/T 17657-2022	Constant Temperature and Humidity Test Chamber，Condition: 60°C, 50–60% relative humidity, 168 hours.After film removal, the product surface must show no adhesive residue.A minimum of 3 samples are required for testing.	Constant temperature and humidity test chamber
		Resistance to cold and heat cycle	GB/T 17657-2022	Constant Temperature and Humidity Test Chamber: One test cycle consists of: 60°C at 50-60% relative humidity for 4 hours, followed by -20°C at 0% relative humidity for 4 hours. A total of 6 cycles shall be performed.After the final cycle, the test is concluded when the temperature recovers to approximately 25-30°C. The test samples shall then be placed under standard atmospheric conditions for 2 hours.Upon completion of this conditioning period, the samples shall be inspected. After peeling off the protective film, the product surface shall show no adhesive residue, and the protective film itself shall show no signs of embrittlement. A minimum of 3 samples are required for this test.	Constant temperature and humidity test chamber
4	Color		GB/T 17657-2022 in 4.34	Visual color must be essentially consistent with no significant variation. When compared to the standard reference sample, the color difference must be ΔE ≤ 1.5. (mainly visual, supplemented by color difference value).	Visual inspection, color difference meter
5	Coating hardness		GB/T 17657-2022 in 4.58	Hardness ≥H, Test Method: Using a Mitsubishi pencil with a 500g load at a 45° angle.Note: Samples shall be taken from the 100mm position from the top edge. One sample each from the left, middle, and right sections must be tested. For each sample, the test is performed 5 times. A sample is considered acceptable if no scratch or gouge is observed in at least 4 out of the 5 tests.	Electric pencil hardness tester / weight
6	Wear resistance		ASTM F2496 ISO 1518-1 ISO 1518-2 GME 60248 D42 1775	≥50r, A pressure of 750 g/cm² is applied to the coated surface.After 50 cycles, the abraded area may show only slight pinpoint scratches or no scratching at all.	Reciprocating abrasion testing machine/#0000steel wool
7	Glossiness	High gloss	GB/T9754-2007	/	Gloss Meter
7	Glossiness	Matte	GB/T9754-2007	The sample is placed flat on the test bench, and the gloss meter angle is adjusted to60 °test. The test results are:20 °angle≤1.5,60 °angle≤6.0,85 °angle≤40.0.
8	Scratch resistance	Ordinary	/	/	/
8	Scratch resistance	Scratch resistance (Customized)	GB/T17657-2022 in 4.42	1.2N(60g), ① More than90%of the surface of the test piece has no continuous scratches ② Coating thickness≤10um ③ Front and back sides , horizontal and vertical winding to3inch core, no cracking isOK	Scratch resistance tester
9	Surface stain resistance		GB/T17657-2022 in 4.43	① After 16 hours, there is no obvious discoloration after the pollution resistance test. ② After 30 minutes, there is no obvious discoloration after the acetone test. ③ Red ink can be wiped off with clean water. ④ 6824 Oily pen can be wiped off with 75% alcohol. ⑤ 6824 Oily pen can be wiped clean with nano sponge magic eraser dry wipe.	Huang Yu liquid shoe polish, Nestlé coffee 80℃ water, soy sauce, acetone, cola, aged vinegar, red ink, 6824 oily pen, 75% alcohol, nano sponge magic eraser
10	Contact Angle		GB/T 30693-2014	Test water with 3 microliters of water, contact angle ≥88 °.	Water contact angle tester
11	Adhesion	Conventional	GB/T17657-2022 in 4.57	≥4B, left, middle and right hundred grid tests 3 times each.	3M#600/681 (replacement 610) Test tape/gridder
12	Yellowing resistance (168hUVA340)		GB/T23983-2009 GB/T17657-2022 in 4.32	△ E≤3 (Surface oil: △ E≤0.7).	UV yellowing resistance test chamber
13	Lightfastness		GT/T17657-2022 in 4.31	≥3level.	Xenon arc lamp test chamber,8grade blue wool standard sample, gray card
14	Winding		Packaging operation specification	1250mm×3inch compression-resistant polished pipe, smooth surface, no unevenness, neatly rolled, no edge running,250meters/roll , protective film facing outwards.	Visual estimation
15	Product packaging		Packaging operation specification	The tape is dark brown tape. After processing, first wrap it with stretch film, and then wrap the product horizontally with tape3-5laps to prevent the side of the product from being misaligned. The outer packaging is packaged with pearl foam packaging paper printed withLOGO, and both ends of the product are sealed and packaged with paper corner protectors and hardened corner protectors. The packaging should be complete and undamaged.	Visual estimation
16	Product identification, sample		Visual inspection	① On the outer packaging paper, aligned with the top center position directly above the logo and below the corner protectors, affix one large label (58mm218mm, 3 labels in total) with identical information, centered on the back of an A4 sample (210mm297mm). The labeling should be standardized, comprehensive, clear, and accurate. ② The label should include the following information: Product Name, Product Series, Protective Film Name, Product Article Number, Product Specifications, Product Quantity, Base Material Number, Surface Treatment Number, Production Date, and other information. ③ Label information, physical object, A4 sample, the three must be consistent.	Visual estimation

*For specific performance data and parameters, please download them from the Resource Center.

WellP Product Packaging

Product Packaging

The product packaging adopts carefully designed outer packaging combined with protective film,The overall visual clarity is clear and can effectively protect the product,More helpful for customers to quickly identify the brand and strengthen their brand impression.

Product Application Process

flat lamination process

1 Flat Lamination process: Flat lamination applies decorative film onto flat boards using PUR or hot-melt adhesive. This process delivers a smooth, seamless surface with excellent durability and a premium look. It is ideal for PET and PP films, providing superior scratch resistance, heat stability, and long-lasting color.
