Product Series: Matte Skin
Regular sizes: 1250*0.16
Thickness of the protective film: 0.04mm
With back coating: Yes
Product Colors:
Size, color and protective film can all be customized.
PET Solid Color Matte Skin Decorative Film utilizes PETG (Polyethylene Terephthalate-1,4-Cyclohexanedimethanol) as its core material. Through precise blending of color masterbatch and functional additives, it undergoes cast extrusion molding to form the base film. Combined with UV transfer printing surface treatment, this process ultimately creates an innovative eco-friendly decorative material featuring a refined matte finish and skin-like tactile sensation. This material not only delivers exceptional texture but also exhibits outstanding resistance to abrasion, staining, chemical corrosion, and yellowing.
1 Base film: The core material is PETG (polyethylene terephthalate glycol-1,4-cyclohexanedimethanol), a non-crystalline copolyester formed by the copolymerization of three monomers: terephthalic acid (PTA), ethylene glycol (EG), and 1,4-cyclohexanedimethanol (CHDM).
2 Coating: Utilizes UV transfer surface treatment technology to impart core functional properties to the film surface.
3 Protective film: Paired with a 0.04mm-thick PE protective film for added protection.
4 Back coating: The reverse side of the film is coated with a specialized functional coating that can increase the dyne value to 38 or higher while enhancing adhesion.

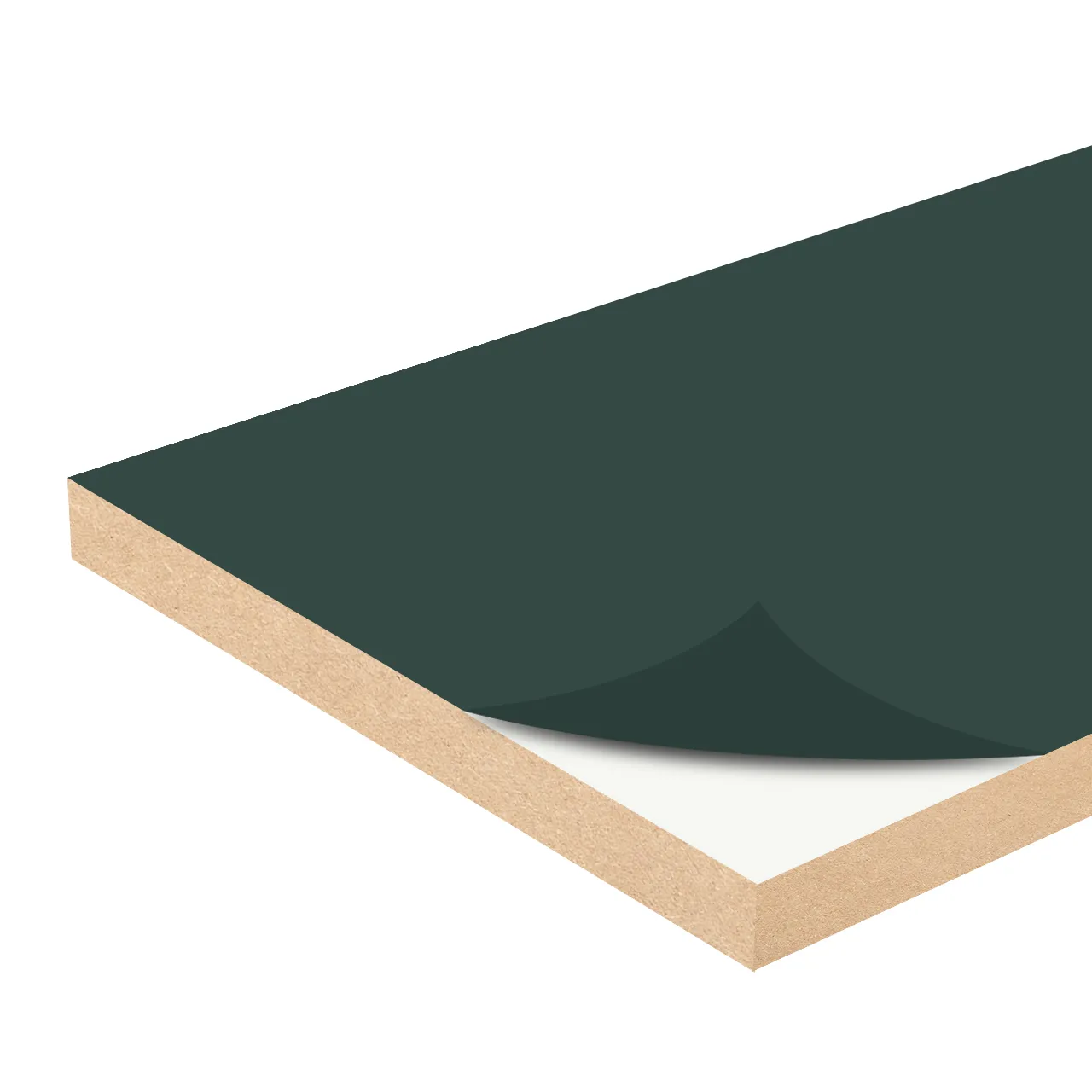

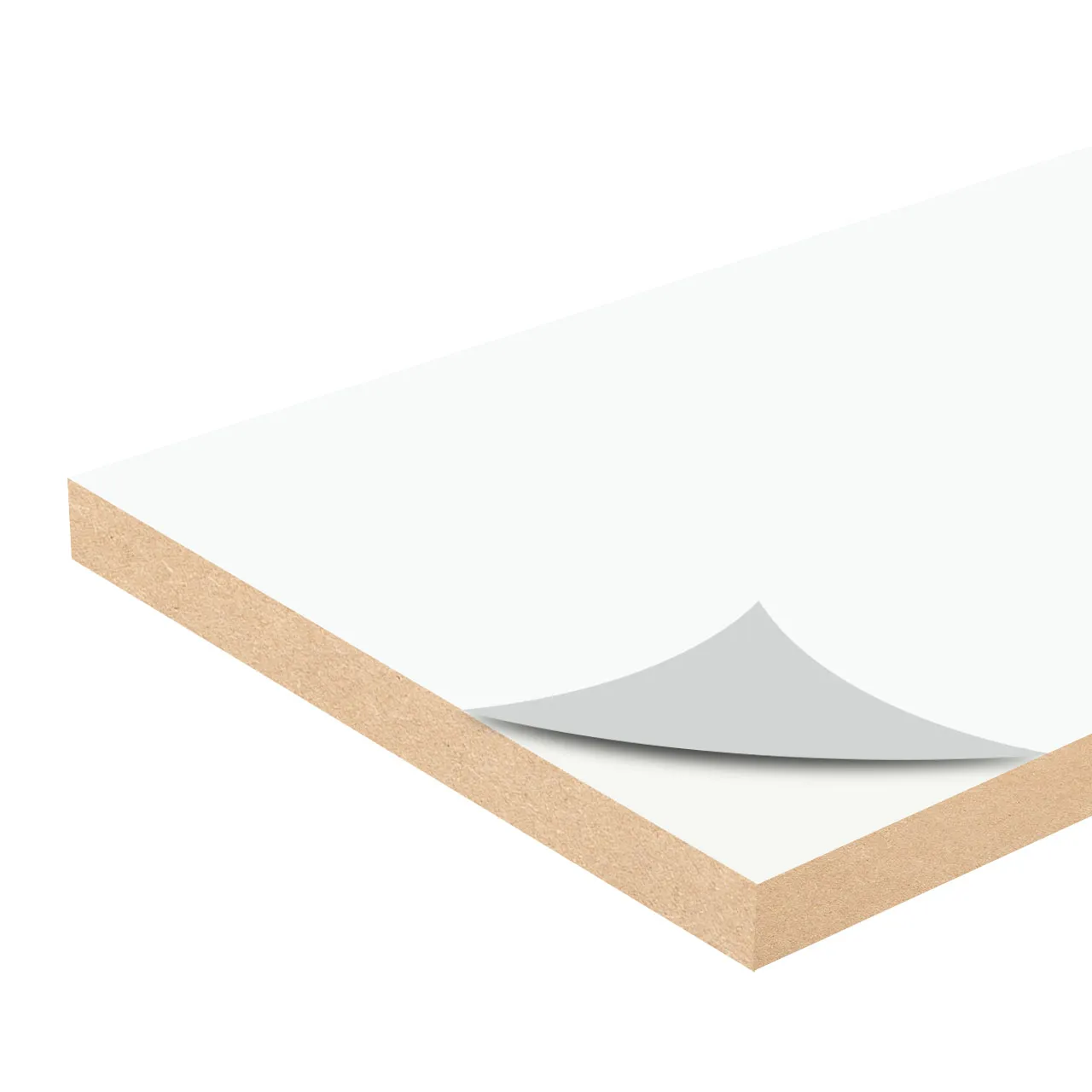

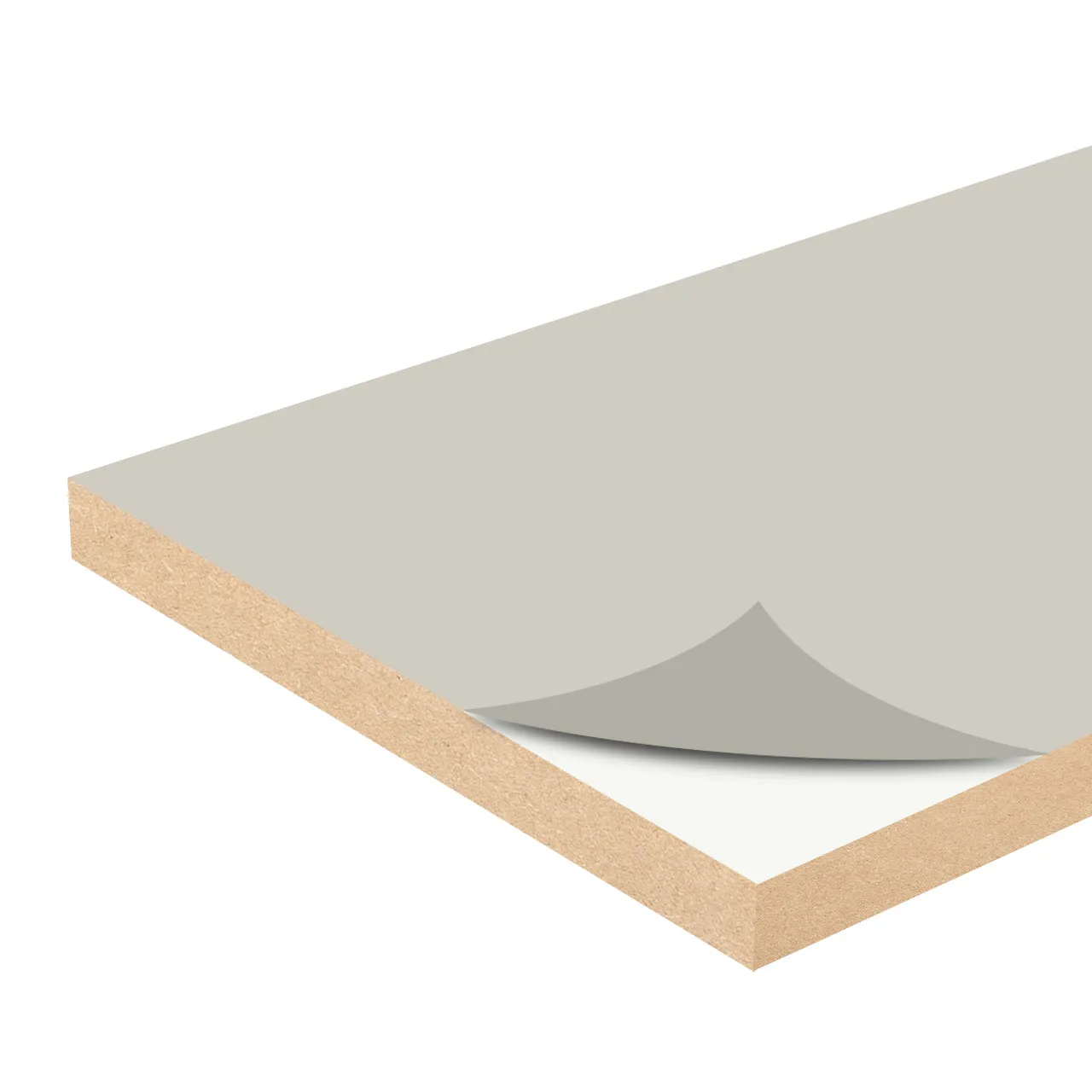

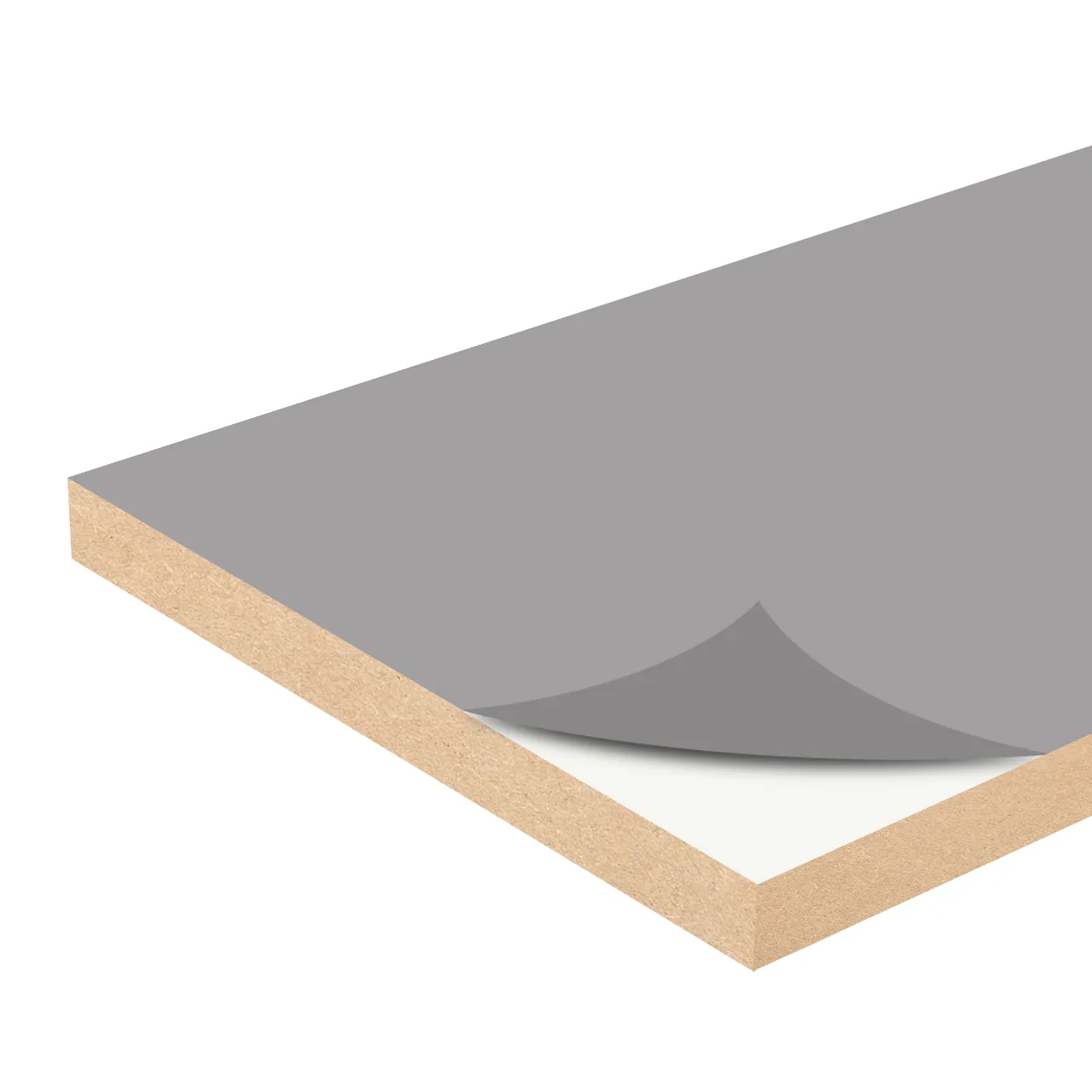

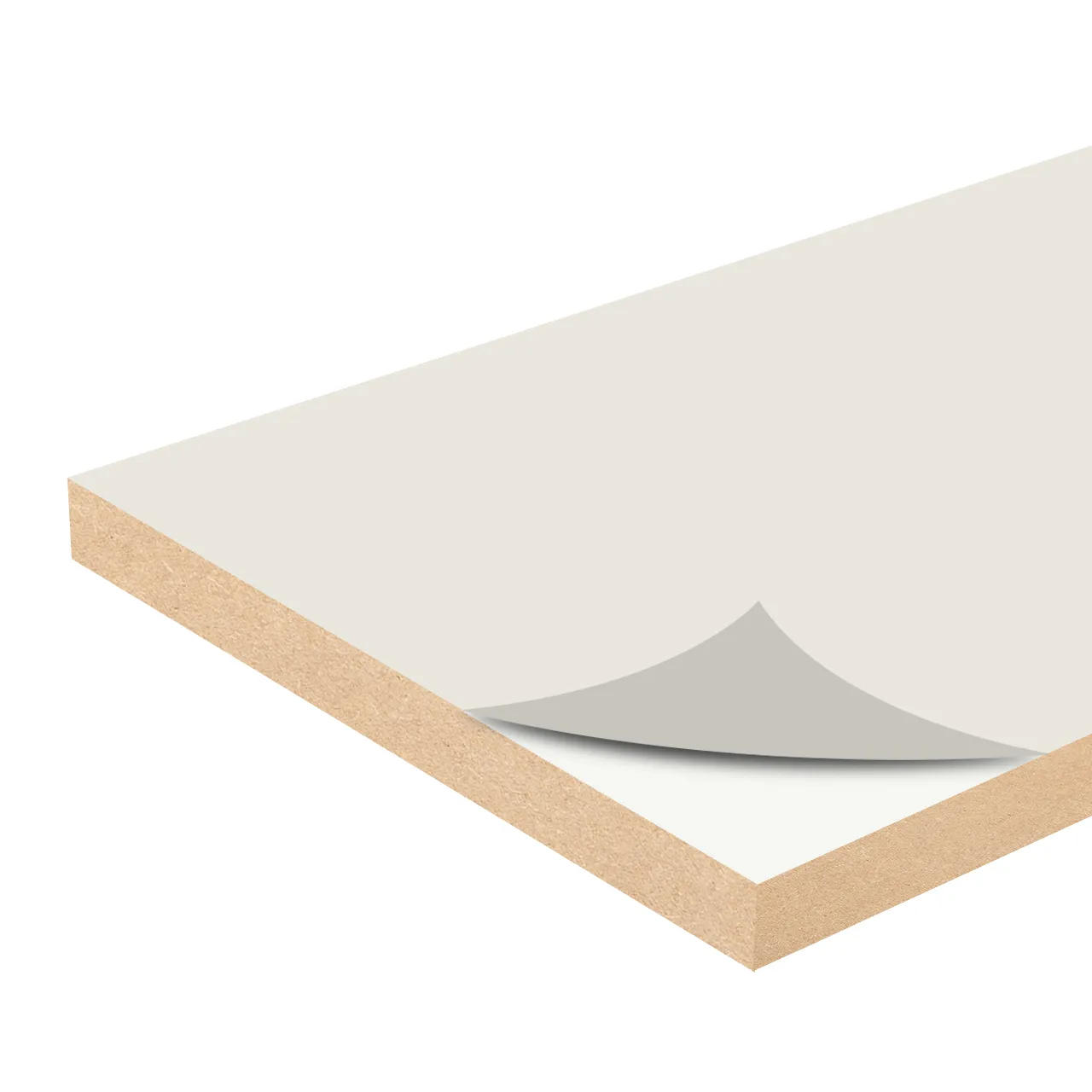

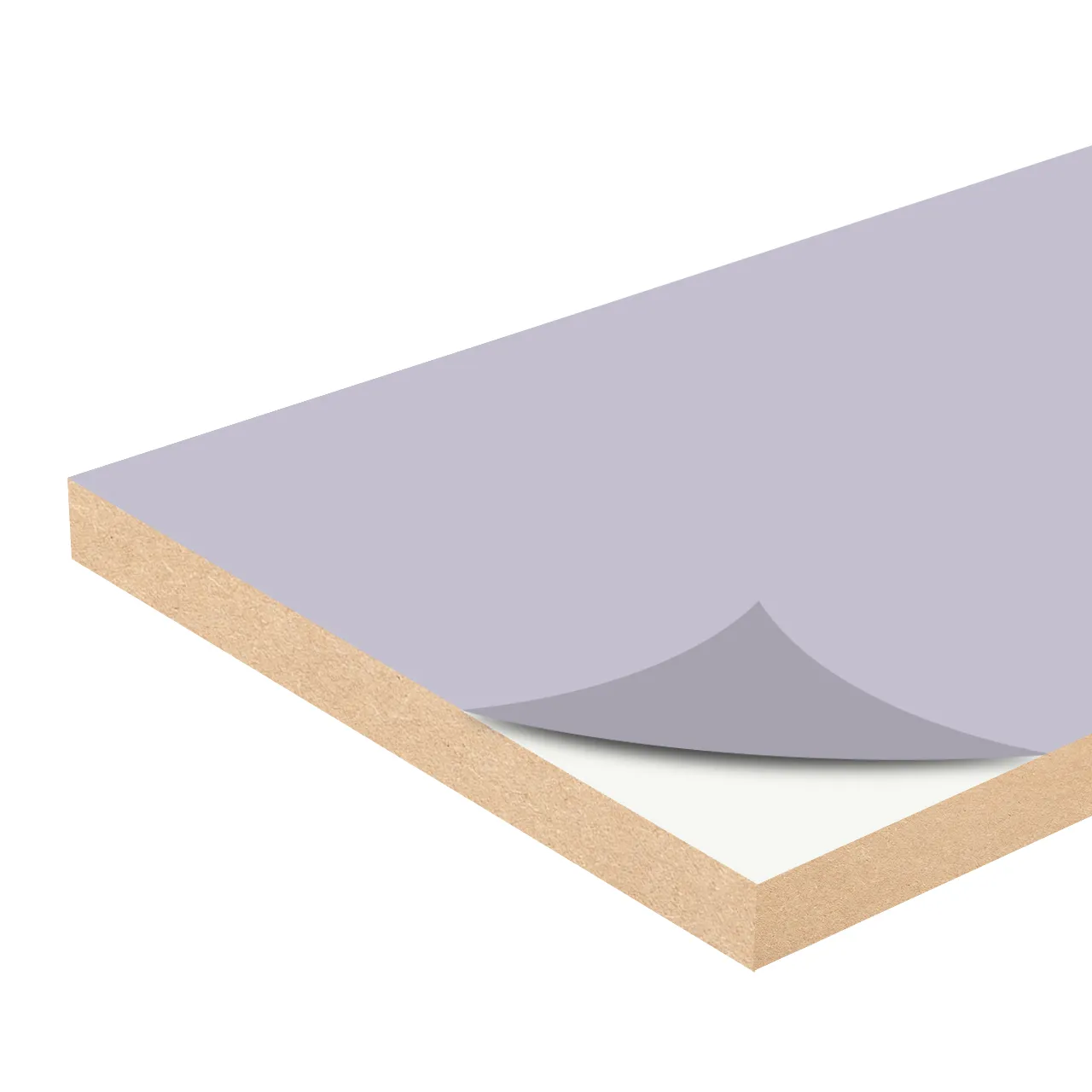

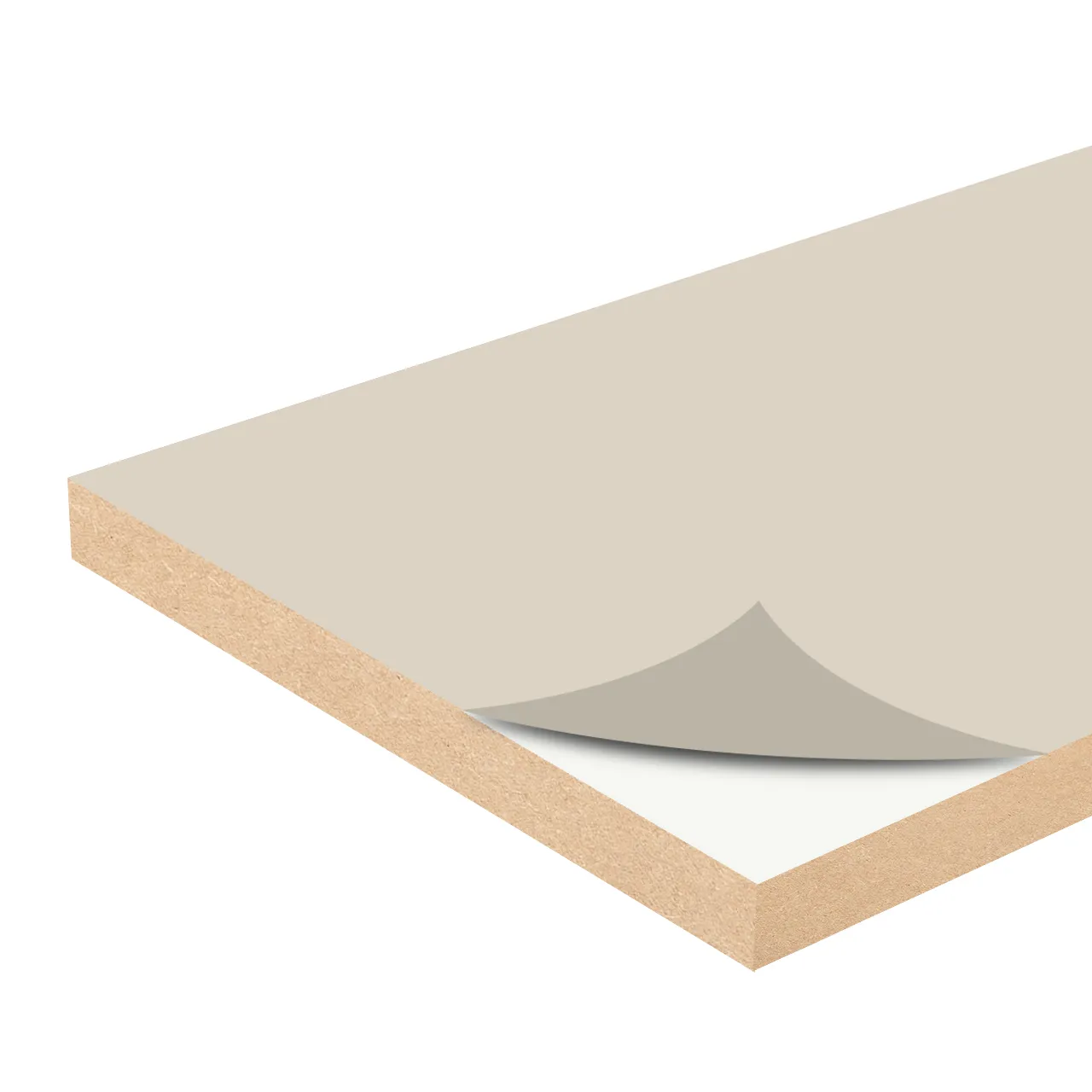

930Y-E
909Y-E
932Y-E
801Y-E
114Y-E
836Y-E
734Y-E
732Y-E
750Y-E
736Y-E
738Y-E
009Y-E
408Y-E
207Y-E
314Y-E
617Y-E
Constructed with formaldehyde-free, eco-friendly base materials, certified by multiple authoritative bodies including FDA and SGS for food-grade and medical-grade standards. Non-toxic and harmless for direct human contact, featuring inherent antibacterial properties and recyclability, aligning with green health and sustainability principles.
Precision surface processing creates a silky-smooth, warm finish, eliminating the roughness and stickiness of ordinary matte films. With a completely grain-free feel, it's ideal for high-touch areas like children's rooms and bedrooms, balancing comfort with premium craftsmanship.
Leveraging core color control technology, we achieve color consistency across different production batches at an industry-leading level, far exceeding conventional standards. Even under large-scale production conditions, we ensure highly uniform coloration, effectively preventing color variations from compromising overall design aesthetics. This delivers precise, long-lasting visual performance.
Boasting high impact resistance, abrasion resistance, and scratch resistance as core strengths, it also delivers outstanding corrosion resistance and yellowing resistance. Effortlessly withstands daily friction, accidental impacts, and harsh environmental erosion, extending service life while significantly reducing maintenance costs.
The material's flexible and moldable properties seamlessly integrate with mainstream finishing techniques like flat application, wrapping, and vacuum forming. It adapts extensively to scenarios such as residential doors, wall panels, cabinets, and wardrobes, fulfilling integrated renovation needs while balancing practicality and design consistency.
Leveraging large-scale production and process optimization, we maintain precise cost control while securing multiple authoritative certifications and ensuring premium performance. Compared to Japanese and Korean products with equivalent performance, we offer superior pricing. Against Chinese manufacturers at similar price points, we deliver greater advantages in certification, performance, and lifespan—striking a balance between high-end quality and affordable pricing.
| NO. | Inspection Item | Test Method/Basis | Judgment Standard | Inspection Equipment | |
| 1 | Product size | Width | Slitting width ±2.0mm, coil width ±2.0mm. | Tape measure | |
| Thickness (Measure the position of 12 points evenly in the width direction) |
0.10<d≤0.20 ±0.01 | Micrometer | |||
| 0.20<d≤0.40 ±0.02 | |||||
| 0.40<d≤0.80 ±0.03 | |||||
| 2 | Surface treatment effect | Q/WSC-PK-JY-047 Visual inspection, observe from different angles |
The surface should be smooth, with uniform color, and free from missing coating, dirt, stains, impurities, oil residue, and UV agent on the reverse side. Use a strong flashlight to illuminate from different angles, and there should be no dense concave-convex points or wrinkles/lines of the transfer film. | Visual estimation | |
| 3 | Protective film | Visual inspection | No residual glue stains, scratches, damage, wrinkles, blistering, peeling, oil residue debris pollution, or other defects are allowed. The edges should be trimmed evenly. | Visual estimation | |
| 4 | Color | Monochrome | GB/T 17657-2022 in 4.34 | Visually consistent, with no significant difference, compared to the surface treatment standard sample △ E≤0.5 | |
| Flash Silver | Visually consistent, with no significant difference, compared to the surface treatment standard sample △ E≤1.5 | Visual inspection, color difference meter | |||
| 5 | Coating hardness | GB/T 17657-2022 in 4.58 | Hardness ≥H | Electric pencil hardness tester / weight | |
| 500g weight, Mitsubishi pencil 45° scratch, Note: The upper end is sampled and tested at the 100mm position, and one sample is taken from the left, middle, and right for testing. Each sample is tested 5 times, and it is qualified if no less than 4 times have no scratches/scratches. | |||||
| 6 | Wear resistance | ASTM F2496 ISO 1518-1 ISO 1518-2 GME 60248 D42 1775 |
≥50r, apply 750g/cm2 pressure to the coating surface, and slight dotted scratches or no scratches on the friction position after 50 cycles. | Reciprocating abrasion testing machine /#0000 steel wool | |
| 7 | Glossiness | GB/T9754-2007 | Place the sample flat on the test bench, adjust the gloss meter angle to 60° for testing, and the test results are: 20° angle ≤1.5, 60° angle ≤6.0, 85° angle ≤40.0. | Gloss Meter | |
| 8 | Scratch resistance | Ordinary | / | / | / |
| Scratch resistance Customized |
4.42 in GB/T17657-2022 | 1.2N (60g), | Scratch resistance tester | ||
| ① More than 90% of the specimen surface has no continuous scratches, | |||||
| ② Coating thickness ≤10um, | |||||
| ③ Front and back sides, horizontal and vertical winding directions on a 3-inch core, no cracking is OK. | |||||
| 9 | Surface stain resistance | 4.43 in GB/T17657-2022 | ① After 16 hours, there is no obvious discoloration after the stain resistance test. | Huang Yu liquid shoe polish, Nestlé coffee 80℃ water, soy sauce, acetone, cola, aged vinegar, red ink, 6824 oily pen, 75% alcohol, nano sponge magic eraser | |
| ② After 30 minutes, there is no obvious discoloration after the acetone test. | |||||
| ③ Red ink can be wiped off with clean water. | |||||
| ④ 6824 oily pen can be wiped off with 75% alcohol. | |||||
| ⑤ 6824 oily pen nano sponge magic wipe can be wiped clean with dry wiping. | |||||
| 10 | Contact Angle | GB/T 30693-2014 | Test water with 3 microliter water droplets, contact angle ≥88 . | Water contact angle tester | |
| 11 | Adhesion | Conventional | 4.57 in GB/T17657-2022 | ≥4B, 3 times for each of the left, middle, and right hundred-grid tests. | 3M#600/681 (alternative 610) test tape/cross cutter |
| Boiling in water | / | ||||
| 12 | Yellowing resistance | GB/T23983-2009 | △E≤3 | UV yellowing resistance test chamber | |
| (168hUVA340) | 4.32 in GB/T17657-2022 | (Surface oil: △E≤0.7). | |||
| 13 | Lightfastness | 4.31 in GT/T17657-2022 | ≥ Level 3. | Xenon arc lamp test chamber, 8-level blue wool standard sample, gray sample card | |
| 14 | Rewinding | Packaging operation specification | 1250mm × 3-inch compression-resistant foam tube or polished tube, smooth surface, no unevenness, neat winding, no running edges, 250 meters/roll, protective film facing outward. | Visual estimation | |
| 15 | Product packaging | Packaging operation specification | The tape is dark blue. After processing, first wrap it with stretch film, and then wrap the product horizontally with tape for 3-5 turns to prevent the product from being misaligned on the side. The outer packaging is wrapped with pearl cotton packaging paper printed with the LOGO. Both ends of the product are sealed and packaged with paper corner protectors and hardened corner protectors. The packaging should be complete and undamaged. | Visual estimation | |
| 16 | Product identification samples |
Visual inspection | ① On the outer packaging paper, aligned with the top center position directly above the logo and below the corner protectors, affix one large label (58mm*218mm, 3 labels in total) with identical information, centered on the back of an A4 sample (210mm*297mm). The labeling should be standardized, comprehensive, clear, and accurate. | Visual estimation | |
| ② The label should include the following information: Product Name, Product Series, Protective Film Name, Product Article Number, Product Specifications, Product Quantity, Base Material Number, Surface Treatment Number, Production Date, and other information. | |||||
| ③ Label information, physical object, A4 sample, the three must be consistent. | |||||
*For specific performance data and parameters, please download them from the Resource Center.

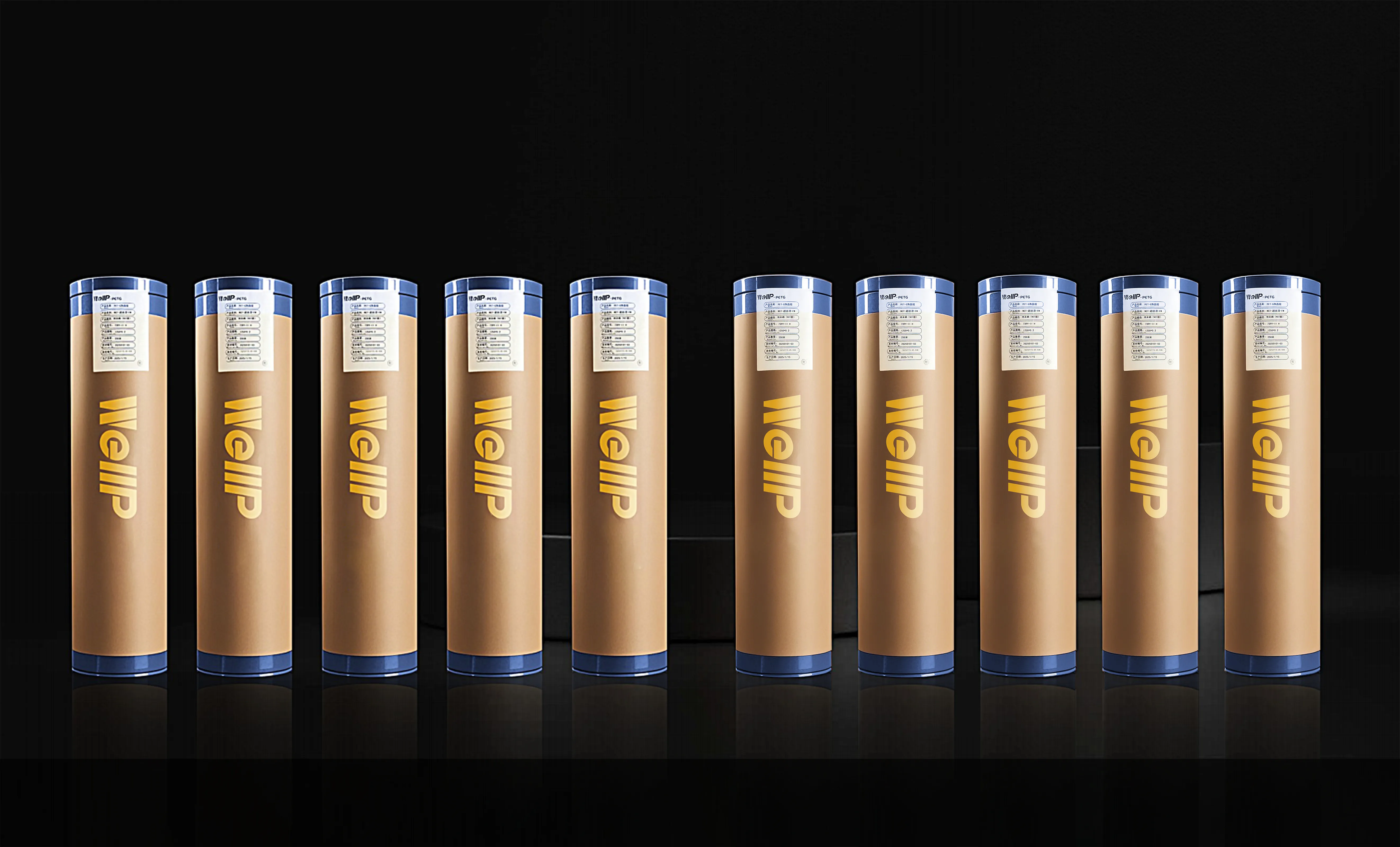

The product packaging adopts carefully designed outer packaging combined with protective film,The overall visual clarity is clear and can effectively protect the product,More helpful for customers to quickly identify the brand and strengthen their brand impression.
1 Flat Lamination Process: Flat lamination applies decorative film onto flat boards using PUR or hot-melt adhesive. This process delivers a smooth, seamless surface with excellent durability and a premium look. It is ideal for PET and PP films, providing superior scratch resistance, heat stability, and long-lasting color.
2 Wrapping Process: Wrapping uses PUR glue to cover decorative films on profiles such as edge bandings, moldings, and skirting boards. PET and PP films offer higher durability and color consistency, ensuring a perfect match with laminated panels.
Special Note: Wrapping Process requires customized specifications and coating formulations.

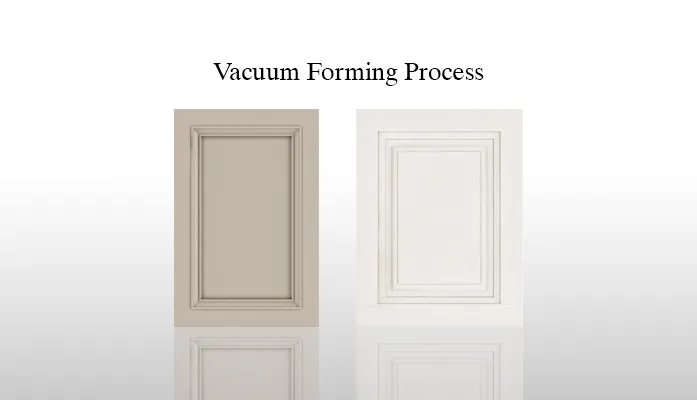

3 Vacuum Forming Process: Vacuum forming shapes heated decorative film over 3D surfaces using vacuum pressure. It's widely used for routed MDF doors and complex profiles. While traditionally applied with PVC films, the market is now shifting toward more eco-friendly alternatives.
Special Note: Vacuum Forming Process requires customized specifications and coating formulations.

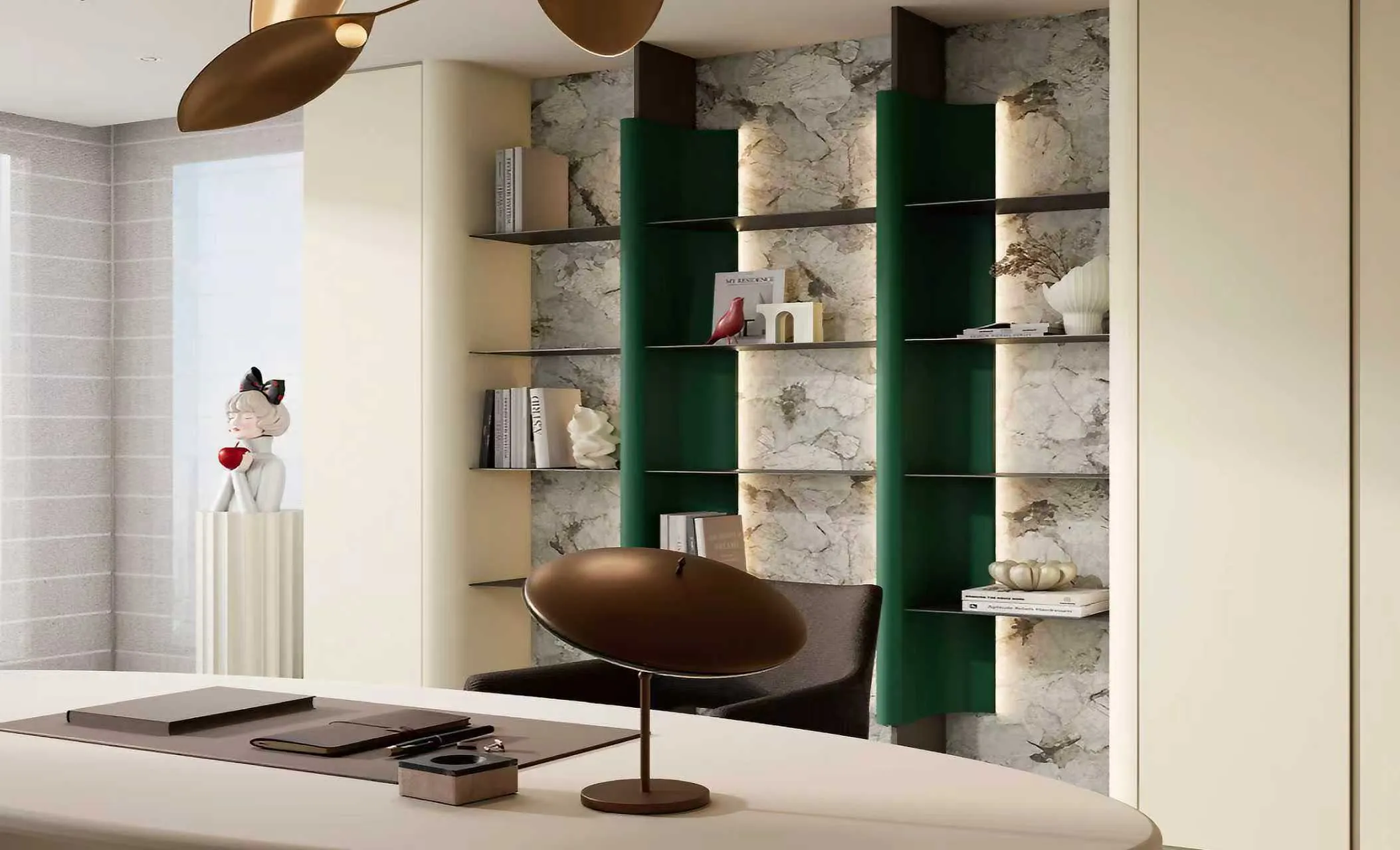

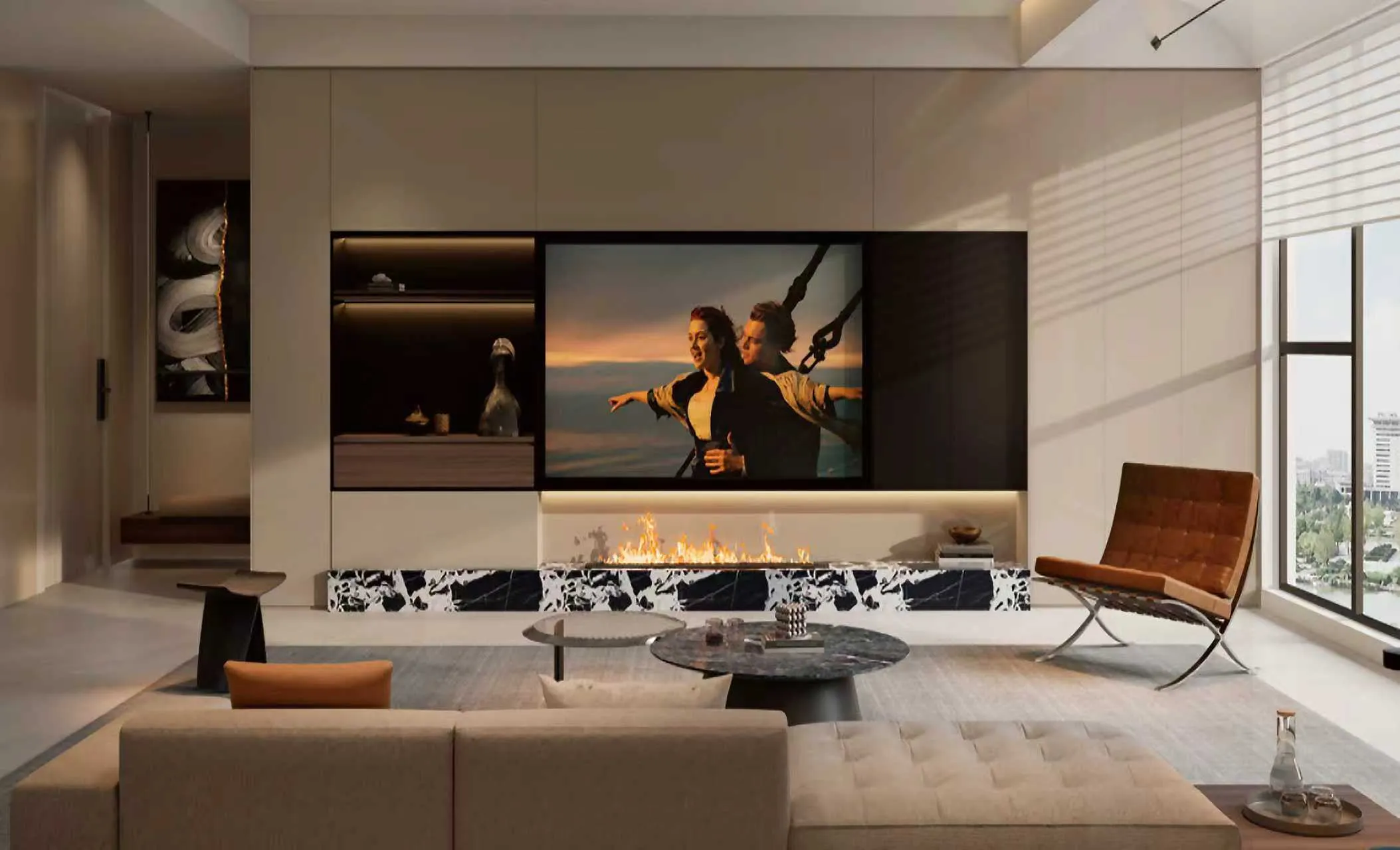

1 Living Room Space
2 Bedroom Space

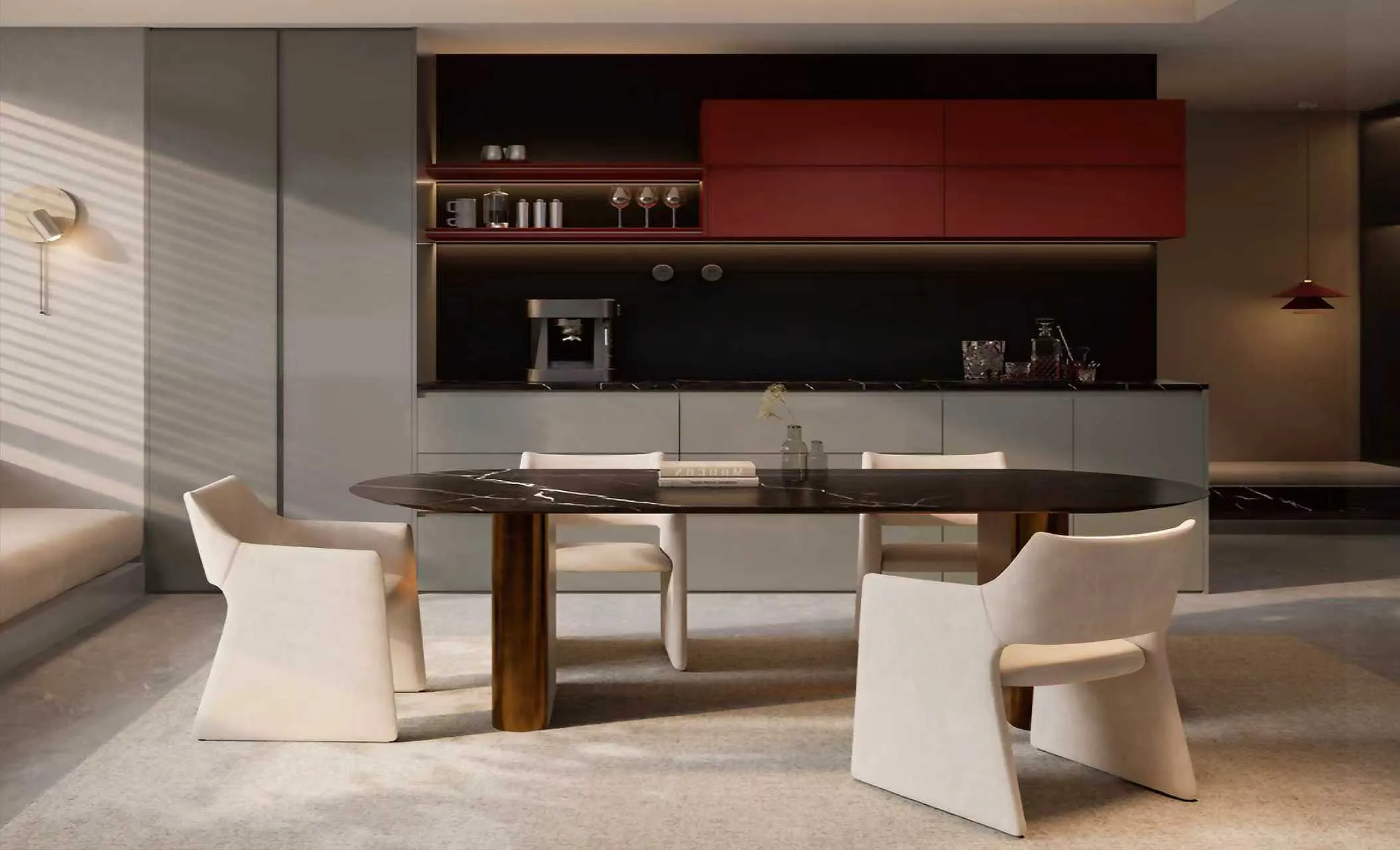

3 Dining & Kitchen Space
